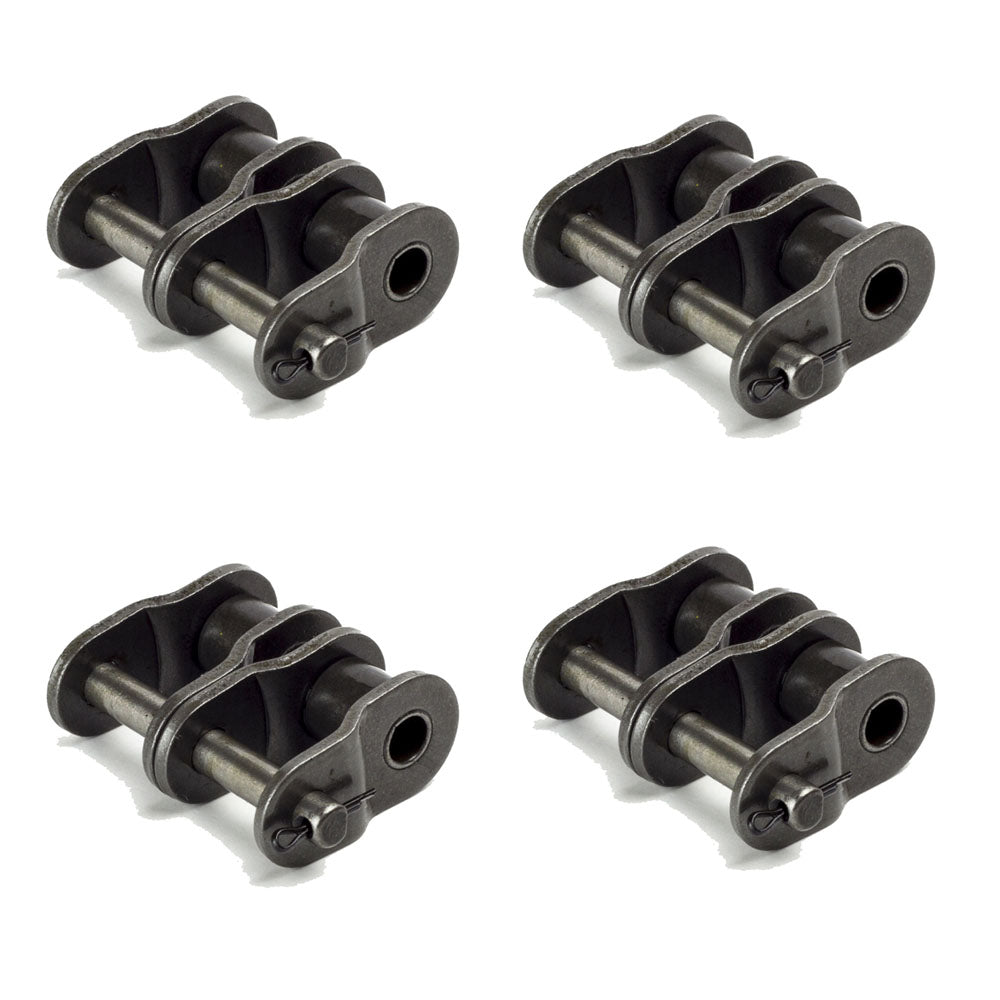

The 100-2 Double Strand Roller Chain offset half link is designed for use with compatible 100-2 double strand roller chain assemblies. For conventional compatible roller chains, an offset link allows a one-pitch chain length adjustment when a standard even-pitch configuration is not suitable.
Manufactured from carbon steel, this component is intended for industrial power transmission applications requiring increased load capacity over a standard single strand chain. The cottered connection must be installed correctly, and confirm the chain dimensions, series, and load requirements before installation.
100-2 Offset Link Specifications
Pitch Size: 1.25 Inch
Roller Diameter: 0.750 Inch
Width Between Inner Plates: 0.750 Inch
Pin Diameter: 0.744 Inch
Pin Length L Max: 0.375 Inch
Pin Length Lc Max: 3.169 Inch
Inner Plate Depth: 1.181 Inch
Plate Thickness: 0.157 Inch
Average Tensile Strength: 48000 lbs
Weight Per Foot: 5.226 lbs
Material: Carbon Steel
Quantity Per Order: 4PCS
