Description

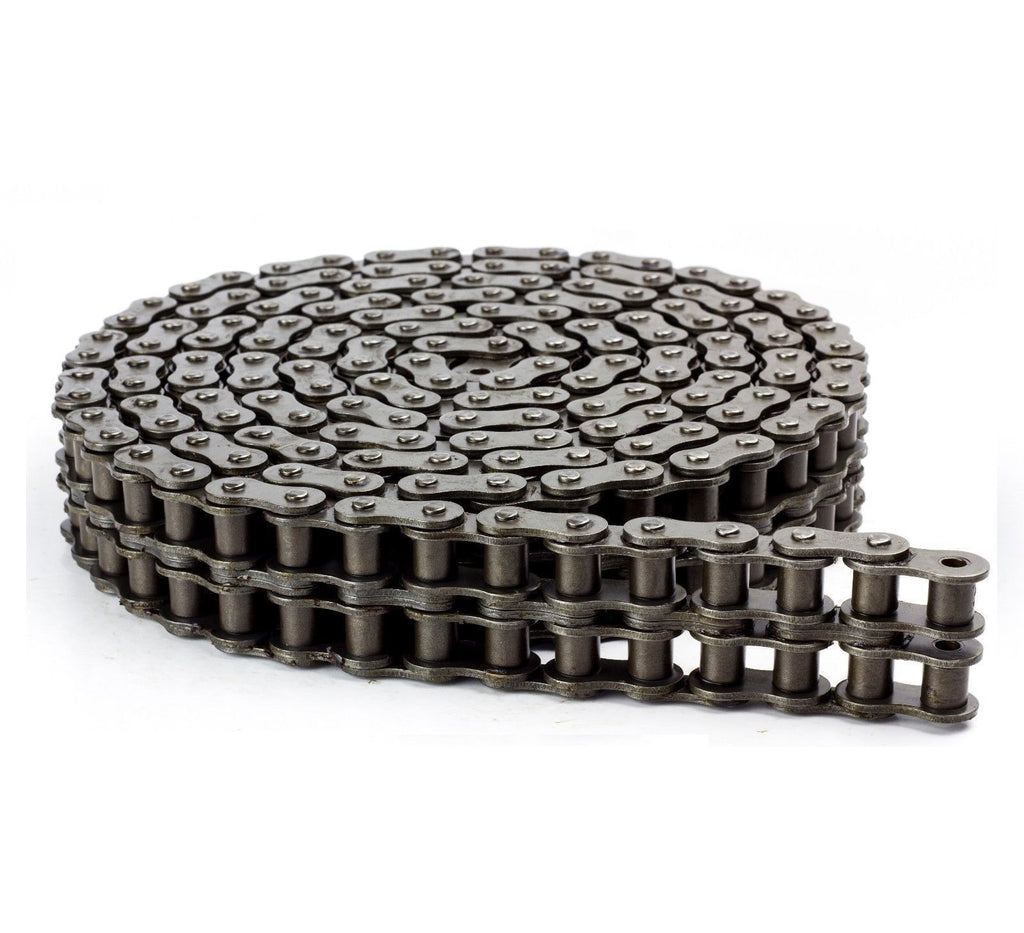

The 12B-2R Double Strand Metric Roller Chain is a B Series roller chain designed for power transmission and conveying applications that use metric chain dimensions. Commonly found in European and internationally manufactured machinery, these chains are used across industrial equipment, conveyors, processing systems, and other machinery requiring 12B-2R metric roller chain.
Unlike standard ANSI roller chains commonly used in North American equipment, B Series metric chains follow a different dimensional standard. Double strand construction provides increased load capacity compared to single strand chain while maintaining the same metric dimensional standard. Although some ANSI and metric chains may share the same pitch, dimensions such as roller diameter, inner width, and plate dimensions can differ, making them generally non-interchangeable. Always match the chain size and dimensions to the existing chain and compatible sprocket before ordering.
12B-2R Chain Specifications
Pitch Size: 0.750 Inch
Roller Diameter: 0.475 Inch
Width Between Inner Plates: 0.460 Inch
Pin Diameter: 0.225 Inch
Pin Length L Max: 1.654 Inch
Pin Length Lc Max: 1.717 Inch
Inner Plate Depth: 0.630 Inch
Plate Thickness: 0.073 inch
Average Tensile Strength: 14860 lb
Connecting Link Included: 1 Link
Material: Carbon Steel
Length: 10 Feet
Weight Per Foot: 1.552 lb/ft
