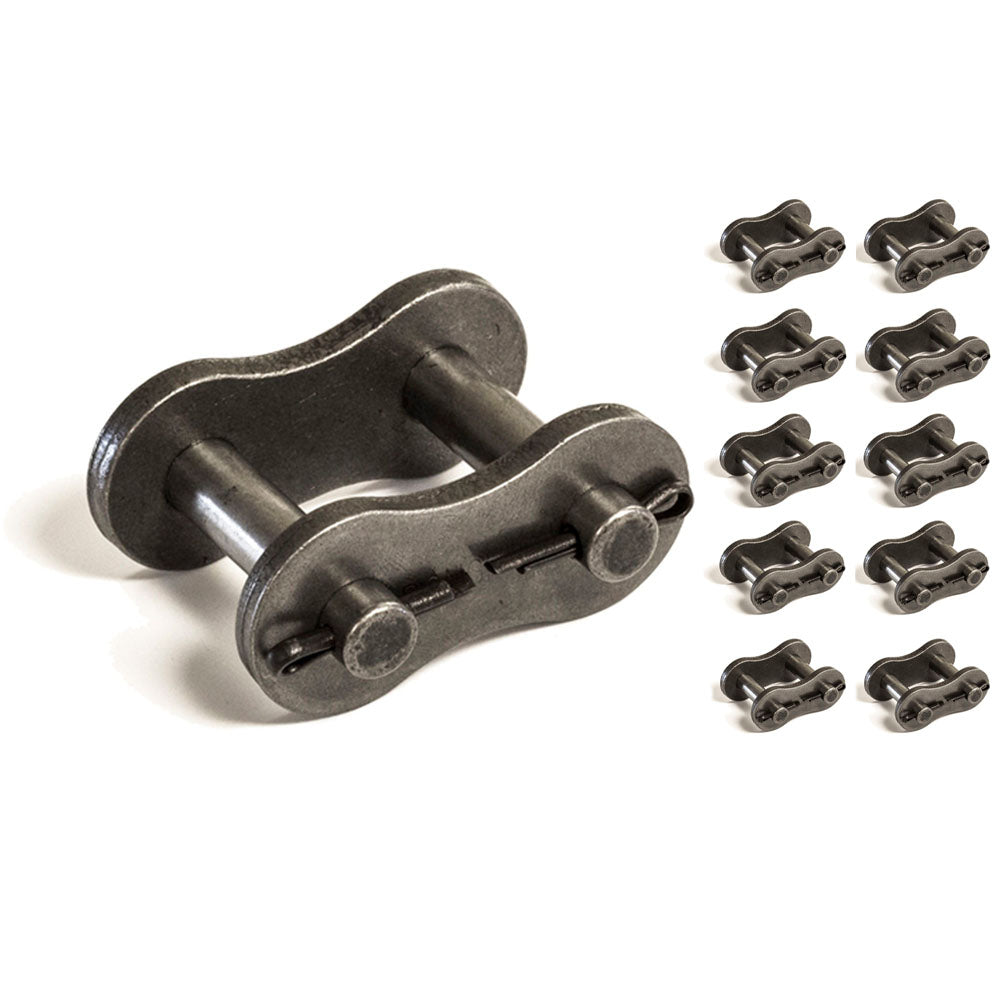

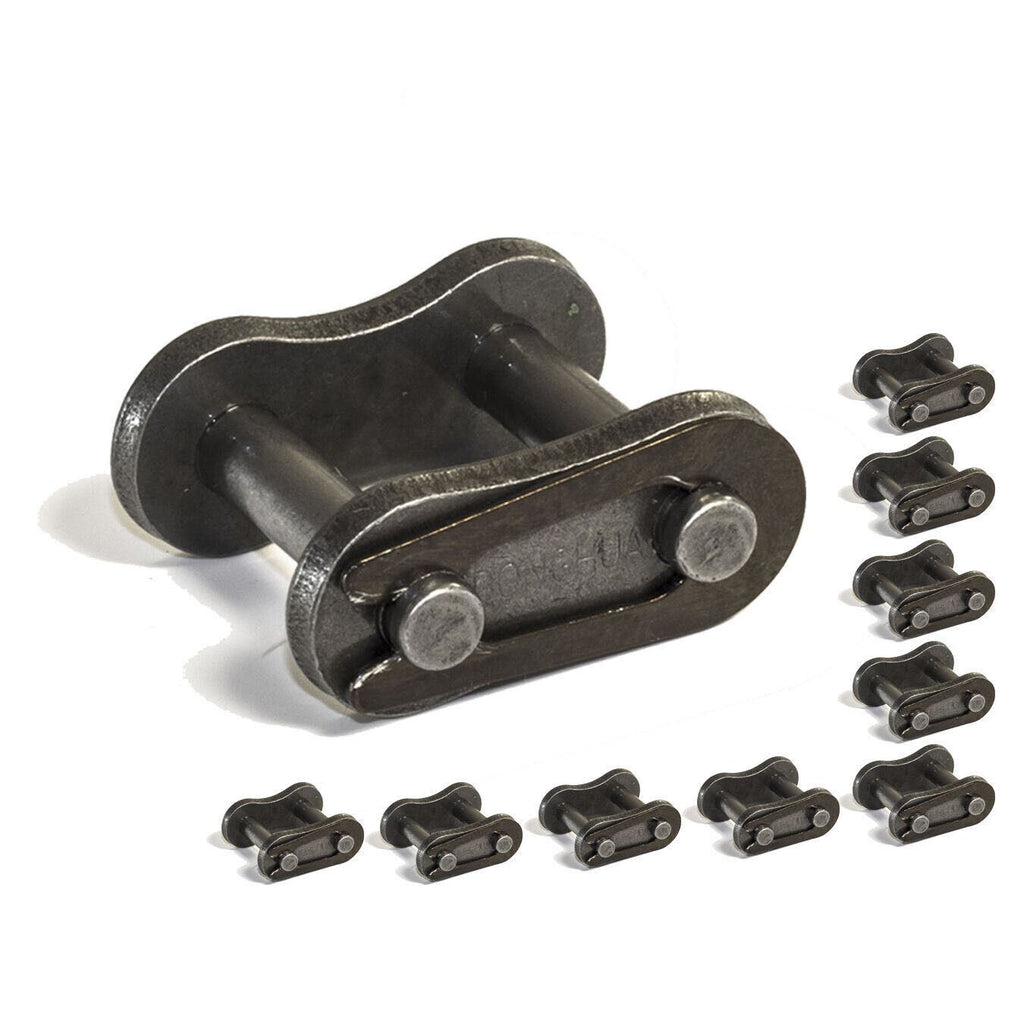

The 12B Metric Roller Chain connecting link is designed for use with compatible 12B chain assemblies. It provides a connection between compatible chain ends for installation, replacement, and maintenance.
Manufactured from carbon steel, this component is intended for industrial power transmission and chain maintenance. The clip type connection should be installed using the appropriate procedures and tools. Verify chain series, dimensions, and compatibility before installation.
Specs for the chain that uses this link
12B Connecting Link Specifications
Pitch Size: 0.75 Inch
Roller Diameter: 0.476 inch
Width Between Inner Plates: 0.46 inch
Pin Diameter: 0.225 inch
Pin Length L Max: 0.887 inch
Pin Length Lc Max: 0.953 inch
Inner Plate Depth: 0.63 inch
Plate Thickness: 0.073 inch
Average Tensile Strength: 7238.85 lb
Weight Per Foot: 0.773 lb/ft
Material: Carbon Steel
Quantity Per Order: 10PCS
