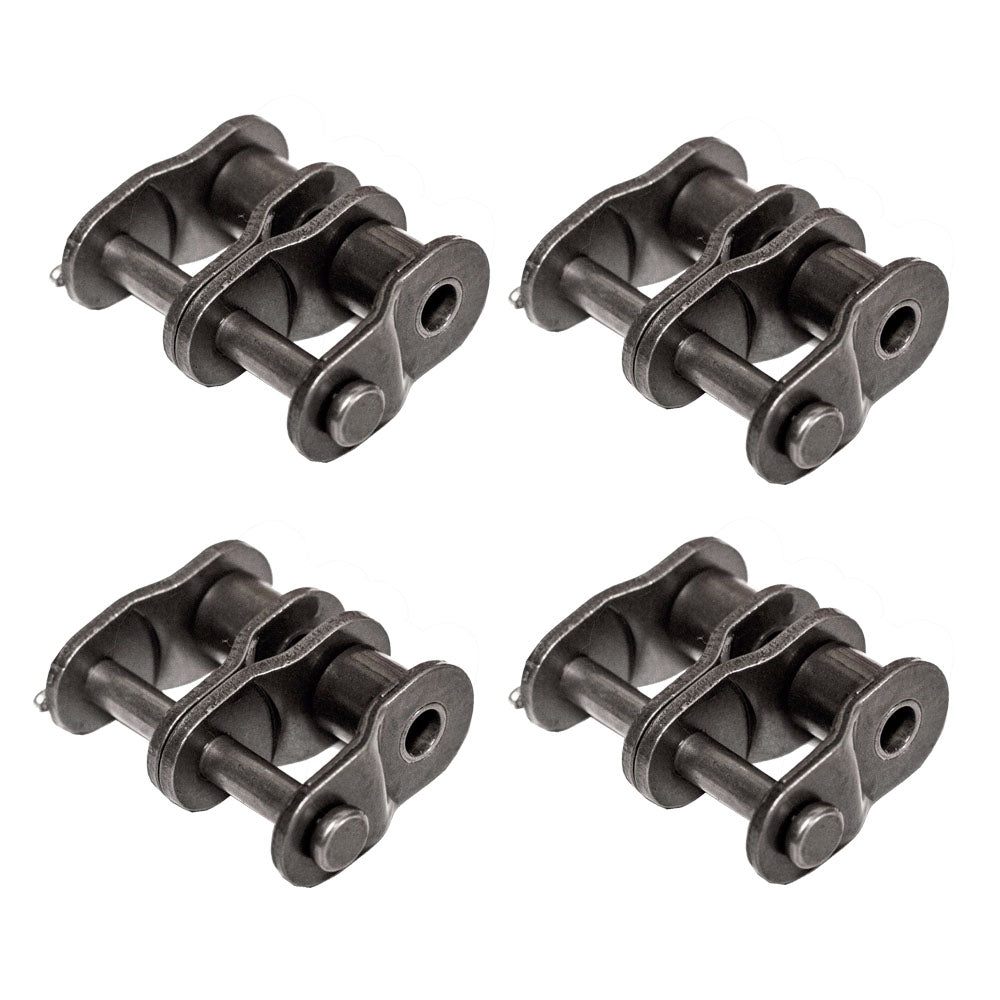

The 140-2 Double Strand Roller Chain offset half link is designed for use with compatible 140-2 double strand roller chain assemblies. For conventional compatible roller chains, an offset link allows a one-pitch chain length adjustment when a standard even-pitch configuration is not suitable.
Manufactured from carbon steel, this component is intended for industrial power transmission applications requiring increased load capacity over a standard single strand chain. The cottered connection must be installed correctly, and confirm the chain dimensions, series, and load requirements before installation.
140-2 Offset Link Specifications
Pitch Size: 1.75 Inch
Roller Diameter: 1.000 Inch
Width Between Inner Plates: 0.993 Inch
Pin Diameter: 0.500 Inch
Pin Length L Max: 4.067 Inch
Pin Length Lc Max: 4.248 Inch
Inner Plate Depth: 1.614 Inch
Plate Thickness: 0.220 Inch
Average Tensile Strength: 92000 lbs
Weight Per Foot: 10.144 lbs
Material: Carbon Steel
Quantity Per Order: 4PCS
