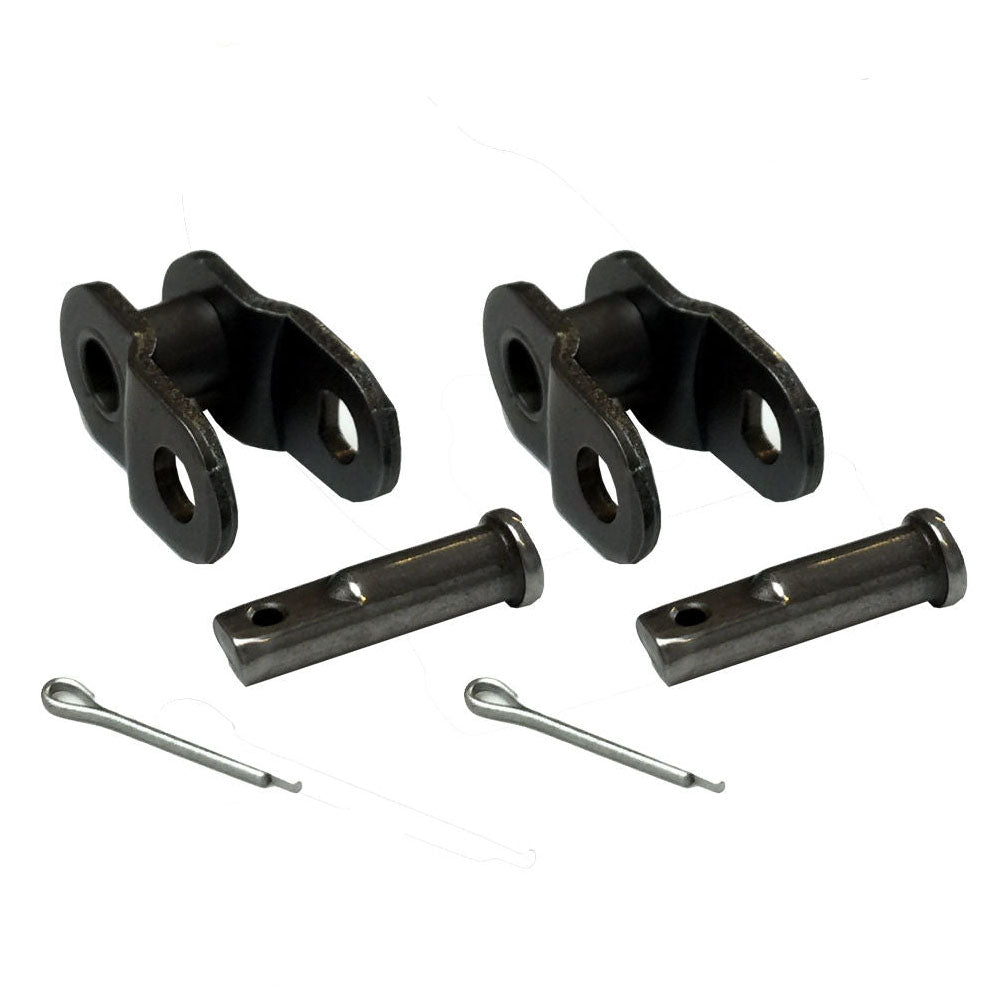

The #140 Single Strand Roller Chain offset half link is designed for use with compatible #140 single strand roller chain assemblies. For conventional compatible roller chains, an offset link allows a one-pitch chain length adjustment when a standard even-pitch configuration is not suitable.
Manufactured from carbon steel, this component is intended for industrial and mechanical power transmission applications. The cottered connection must be installed correctly, and confirm the chain dimensions, series, and load requirements before installation.
#140 Offset Link Specifications
Pitch Size: 1.75 Inch
Roller Diameter: 1.000 Inch
Width Between Inner Plates: 0.993 Inch
Pin Diameter: 0.500 Inch
Pin Length L Max: 2.142 Inch
Pin Length Lc Max: 2.323 Inch
Inner Plate Depth: 1.614 Inch
Plate Thickness: 0.220 Inch
Average Tensile Strength: 46000 lbs
Weight Per Foot: 5.025 lbs
Material: Carbon Steel
Quantity Per Order: 2PCS
