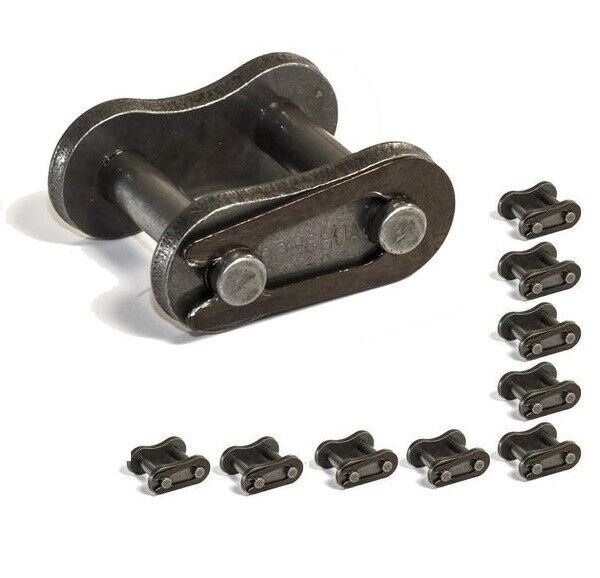

The 16B Metric Roller Chain connecting link is designed for use with compatible 16B chain assemblies. It provides a connection between compatible chain ends for installation, replacement, and maintenance.
Manufactured from carbon steel, this component is intended for industrial power transmission and chain maintenance. The clip type connection should be installed using the appropriate procedures and tools. Verify chain series, dimensions, and compatibility before installation.
Specs for the chain that uses this link
16B Connecting Link Specifications
Pitch Size: 1 Inch
Roller Diameter: 0.626 inch
Width Between Inner Plates: 0.671 inch
Pin Diameter: 0.326 inch
Pin Length L Max: 1.422 inch
Pin Length Lc Max: 1.474 inch
Inner Plate Depth: 0.827 inch
Plate Thickness: 0.163/0.122 inch
Average Tensile Strength: 16366 lb
Weight Per Foot: 1.821 lb/ft
Material: Carbon Steel
Quantity Per Order: 10PCS
