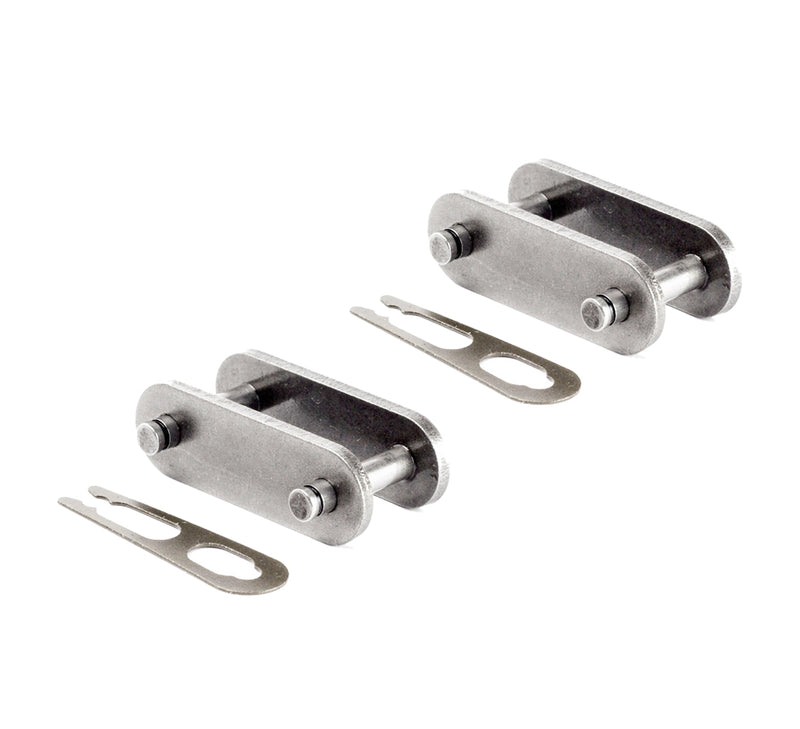

The C2062SS Oversized Roller Stainless Steel Conveyor Chain connecting link is designed for use with compatible C2062SS chain assemblies. It provides a connection between compatible chain ends for installation, replacement, and maintenance.
Manufactured from stainless steel, this component is intended for food processing, washdown conveyors, corrosive material handling, and conveyor systems. The clip type connection should be installed using the appropriate procedures and tools. Verify chain series, dimensions, and compatibility before installation.
C2062SS Connecting Link Specifications
Pitch Size: 1.5 Inch
Roller Diameter: 0.312 Inch
Width Between Inner Plates: 0.495 Inch
Pin Diameter: 0.234 Inch
Pin Length L Max: 1.150 Inch
Pin Length Lc Max: 1.244 Inch
Inner Plate Depth: 0.709 Inch
Plate Thickness: 0.128 Inch
Average Tensile Strength: 4932 lb
Material: Stainless Steel
Weight Per Foot: 0.978 lbs
Quantity Per Order: 2PCS
