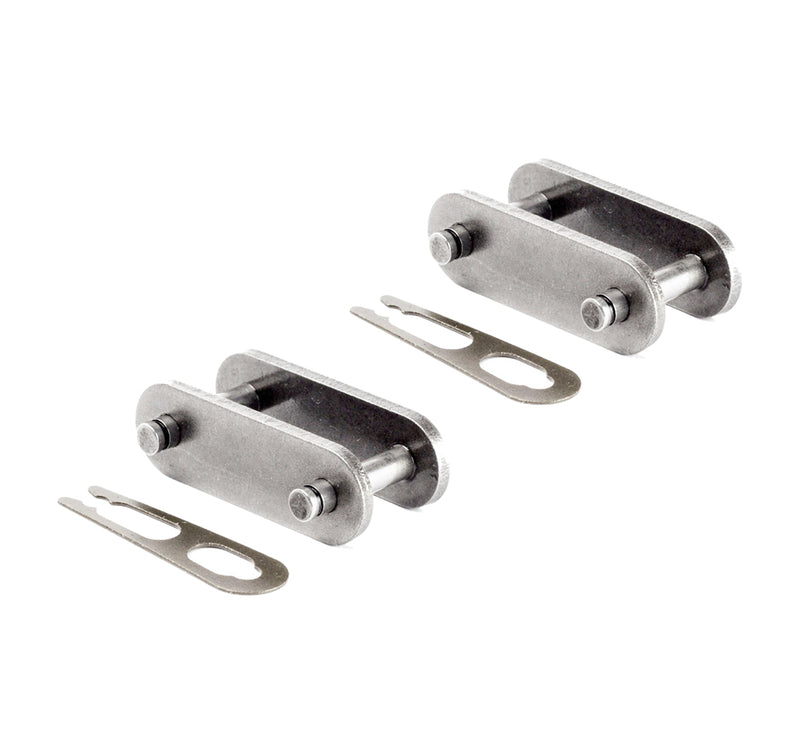

The C2080SS Stainless Steel Conveyor Chain connecting link is designed for use with compatible C2080SS chain assemblies. It provides a connection between compatible chain ends for installation, replacement, and maintenance.
Manufactured from stainless steel, this component is intended for food processing, washdown conveyors, packaging, and corrosive environments. The clip type connection should be installed using the appropriate procedures and tools. Verify chain series, dimensions, and compatibility before installation.
C2080SS Connecting Link Specifications
Pitch Size: 2 Inch
Roller Diameter: 0.625 Inch
Width Between Inner Plates: 0.620 Inch
Pin Diameter: 0.312 Inch
Pin Length L Max: 1.425 Inch
Pin Length Lc Max: 1.551 Inch
Inner Plate Depth: 0.945 Inch
Plate Thickness: 0.157 Inch
Average Tensile Strength: 8841 lb
Material: Stainless Steel
Weight Per Foot: 1.722 lbs
Quantity Per Order: 2PCS
