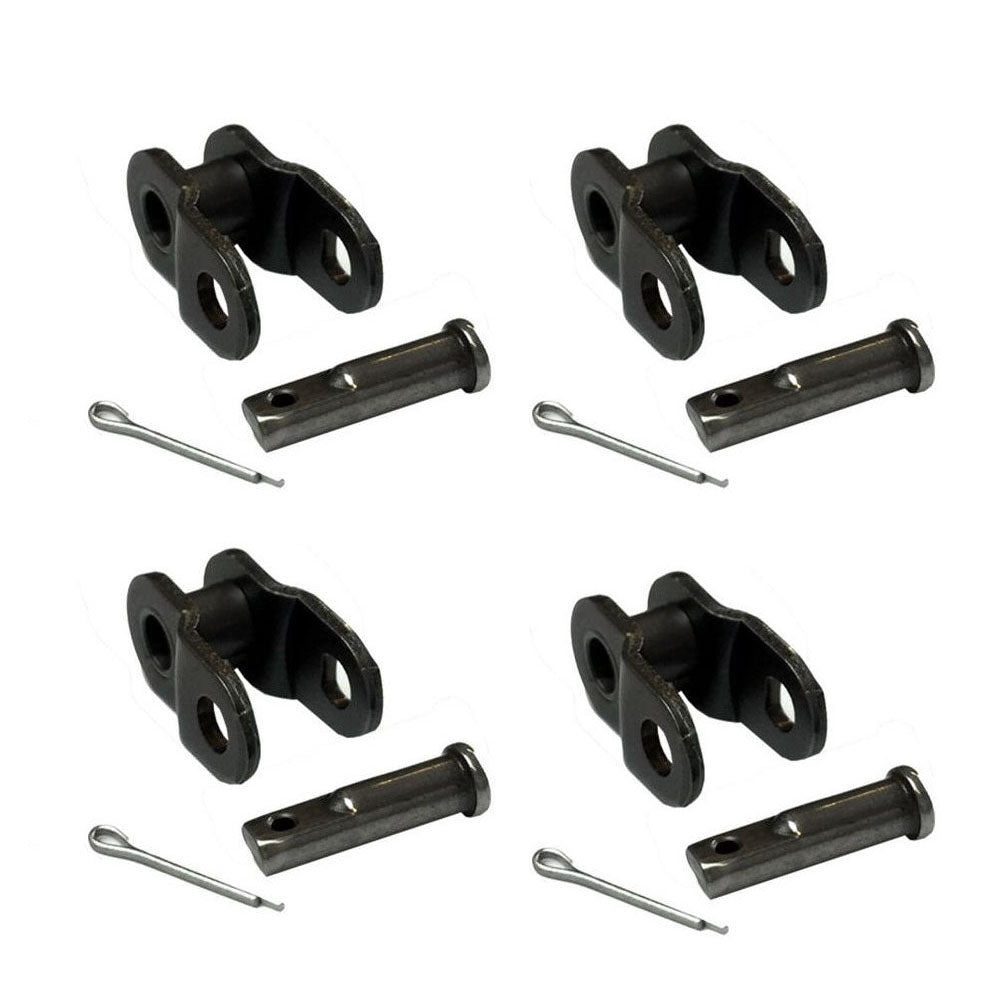

The #160 Single Strand Roller Chain offset half link is designed for use with compatible #160 single strand roller chain assemblies. For conventional compatible roller chains, an offset link allows a one-pitch chain length adjustment when a standard even-pitch configuration is not suitable.
Manufactured from carbon steel, this component is intended for industrial and mechanical power transmission applications. The cottered connection must be installed correctly, and confirm the chain dimensions, series, and load requirements before installation.
#160 Offset Link Specifications
Pitch Size: 2 Inch
Roller Diameter: 1.125 Inch
Width Between Inner Plates: 1.242 Inch
Pin Diameter: 0.562 Inch
Pin Length L Max: 2.551 Inch
Pin Length Lc Max: 2.740 Inch
Inner Plate Depth: 1.882 Inch
Plate Thickness: 0.252 Inch
Average Tensile Strength: 58000 lbs
Weight Per Foot: 6.767 lbs
Material: Carbon Steel
Quantity Per Order: 4PCS
