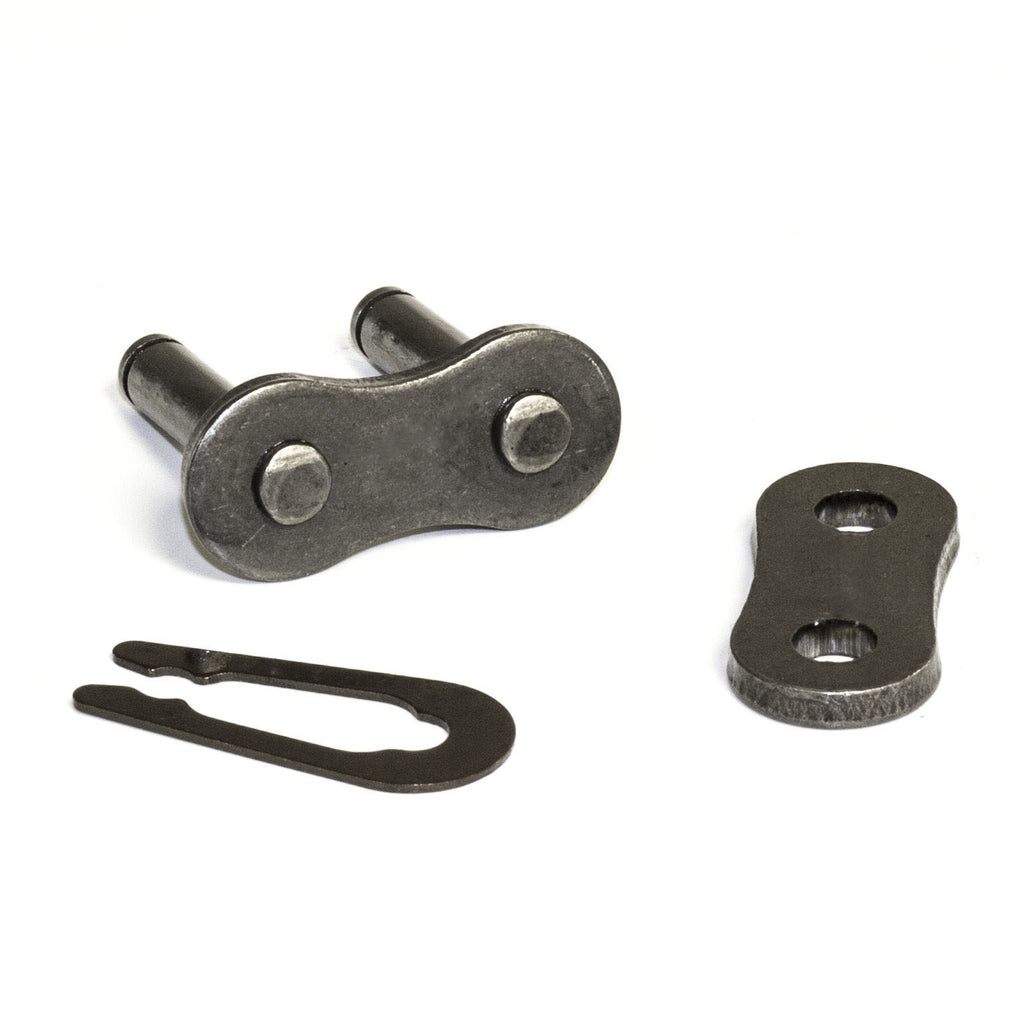

The 520H heavy duty O-Ring motorcycle chain connecting link is designed for use with compatible 520H chain assemblies. It connects compatible chain ends during chain installation, replacement, or maintenance. Designed for use with compatible O-ring sealed chain assemblies, it helps maintain the intended sealed connection when installed with the correct seals and components.
Manufactured from carbon steel, this connecting link is intended for motorcycle and powersports chain-drive systems. Its rivet-type connection requires proper installation using the appropriate tools and procedures. Confirm chain size, chain manufacturer or series, connection dimensions, and load requirements before installation.
520H Connecting Link Specifications
Pitch Size: 0.63 Inch
Roller Diameter: 0.25 Inch
Width Between Inner Plates: 0.25 Inch
Pin Diameter: 0.206 Inch
Pin Length L Max: 0.807 Inch
Pin Length Lc Max: 0.744 Inch
Inner Plate Depth: 0.60 Inch
Plate Thickness: 0.095 Inch
Average Tensile Strength: 7000 lb
Material: Carbon Steel
Quantity Per Order: 4PCS
