Description
This ANSI #41NP corrosion-resistant roller chain is designed for industrial and mechanical power transmission applications where added protection against rust and corrosion is required. Manufactured from carbon steel with a nickel-plated coating and precision-matched components, it delivers reliable strength, smooth sprocket engagement, and dependable wear performance while helping extend service life in moisture, washdown, or corrosive environments. This chain has an average tensile strength of approximately 1,516lbs and is supplied in a standard 10 foot length, with additional lengths available. Manufactured to ANSI dimensional standards for compatibility with #41 sprockets and components.
A matching connecting link is included for convenient installation, and additional connecting links and offset links are available and recommended to keep on hand to minimize downtime and allow for quick adjustments or repairs.
Not sure if this is the correct size for your application? Our team is available to assist with fit confirmation or accessory selection.

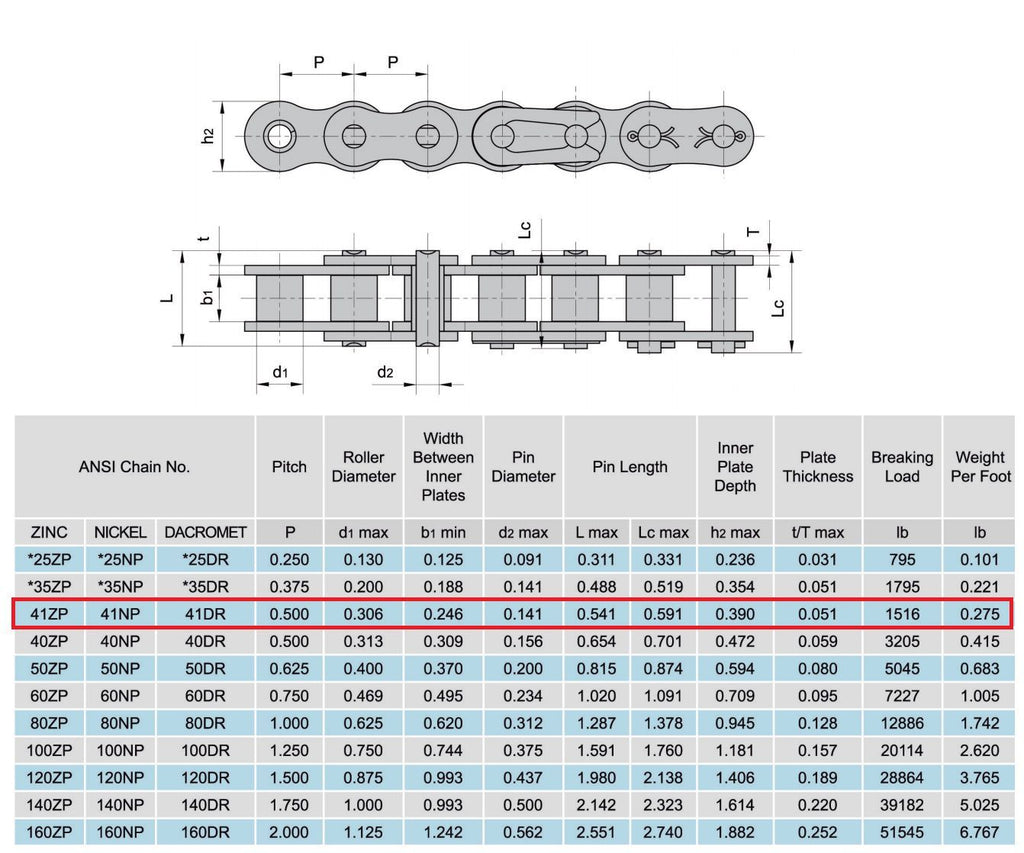

41NP Roller Chain Specifications
Pitch Size: 0.500 Inch
Roller Diameter: 0.306 Inch
Width Between Inner Plates: 0.246 Inch
Pin Diameter: 0.141 Inch
Pin Length L Max: 0.541 Inch
Pin Length Lc Max: 0.591 Inch
Inner Plate Depth: 0.390 Inch
Plate Thickness: 0.051 Inch
Average Tensile Strength: 1516 lb
Connecting Links Included: 1 Link
Material: Carbon Steel with Nickel-Plated Coating
Length: 10 Feet
Weight Per Foot: 0.275 lbs
