Description

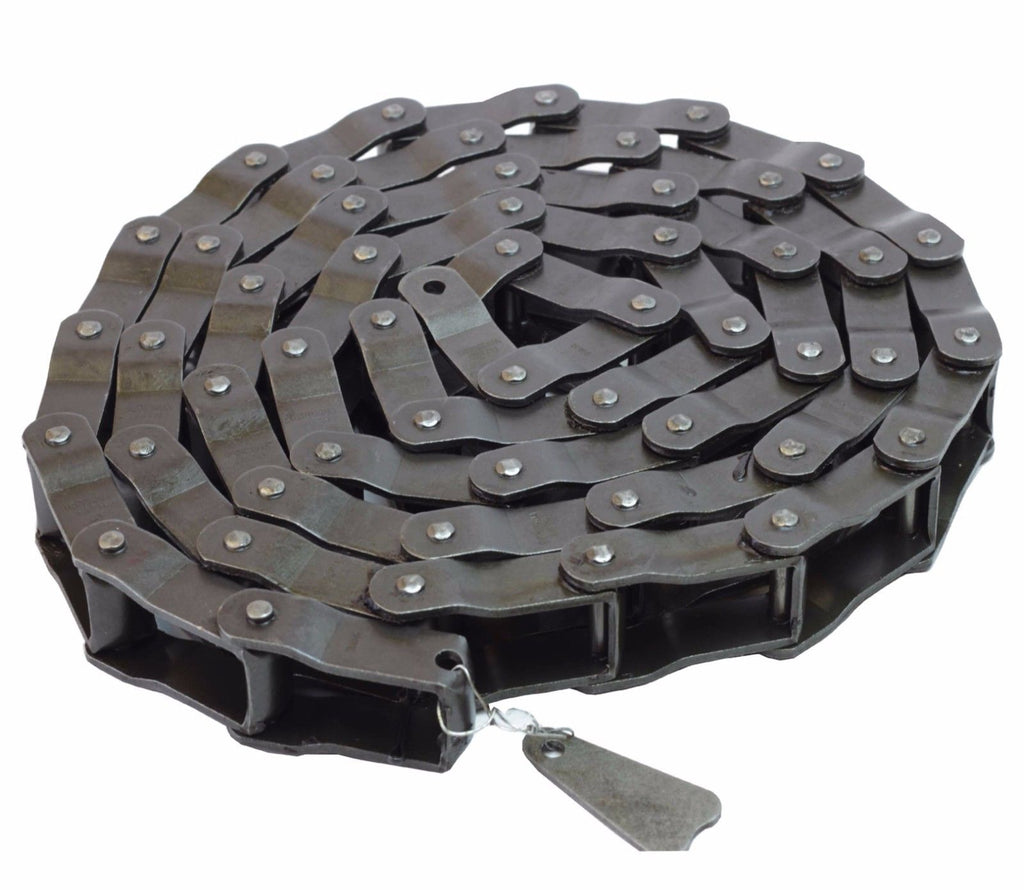

The Jeremywell 667J Steel Pintle Chain is designed for dependable conveying and material handling in demanding industrial and agricultural applications. Its durable pintle-style construction provides a strong, practical solution for moving bulk materials in environments where dirt, debris, and abrasive materials are common.
The open-barrel design of steel pintle chain helps reduce material buildup around the chain joints, allowing debris to pass through more easily during operation. This makes 667J well suited for applications where conventional chain designs may be more susceptible to buildup and contamination.
Built for reliable performance in demanding working conditions, 667J pintle chain is commonly used in agricultural equipment, manure spreaders, fertilizer spreaders, feed systems, material-handling conveyors, wastewater equipment, and other industrial conveying applications.

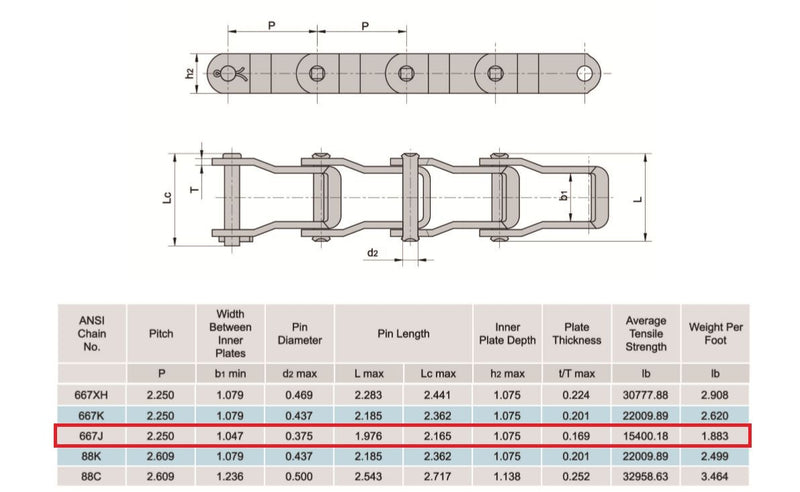

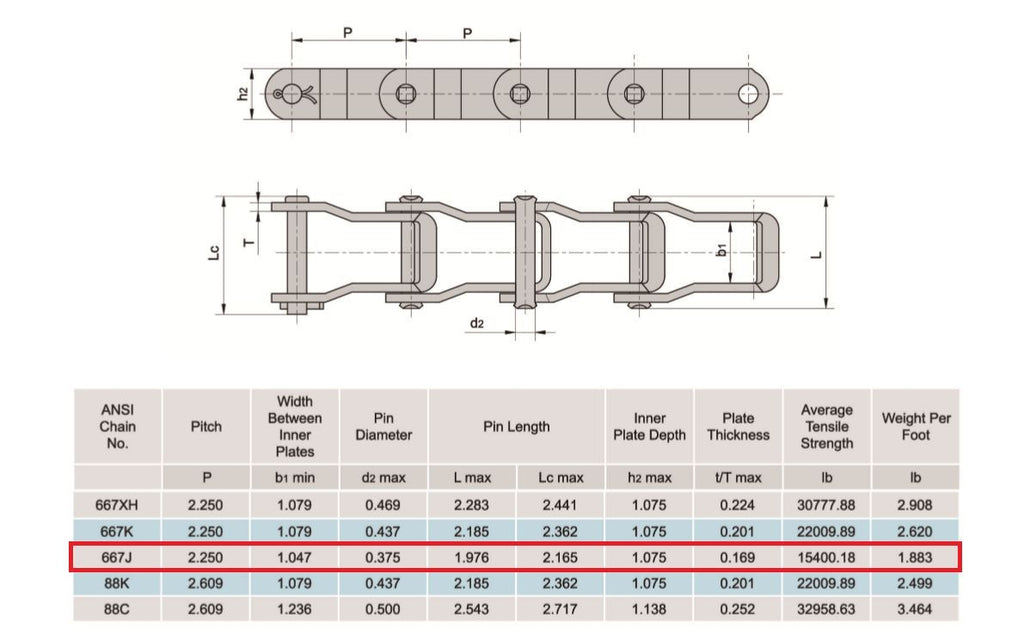

667J Chain Specifications
Pitch Size: 2.250 in
Width Between Inner Plates: 1.047 in
Pin Diameter: 0.375 in
Pin Length L Max: 1.976 in
Pin Length Lc Max: 2.165 in
Inner Plate Depth: Need to update
Plate Thickness: 0.169 in
Average Tensile Strength: 15400.18 lbs
Connecting Link Included: 1 Link
Material: Carbon Steel
Length: 10 ft
Weight Per Foot: 1.883 lbs/ft
