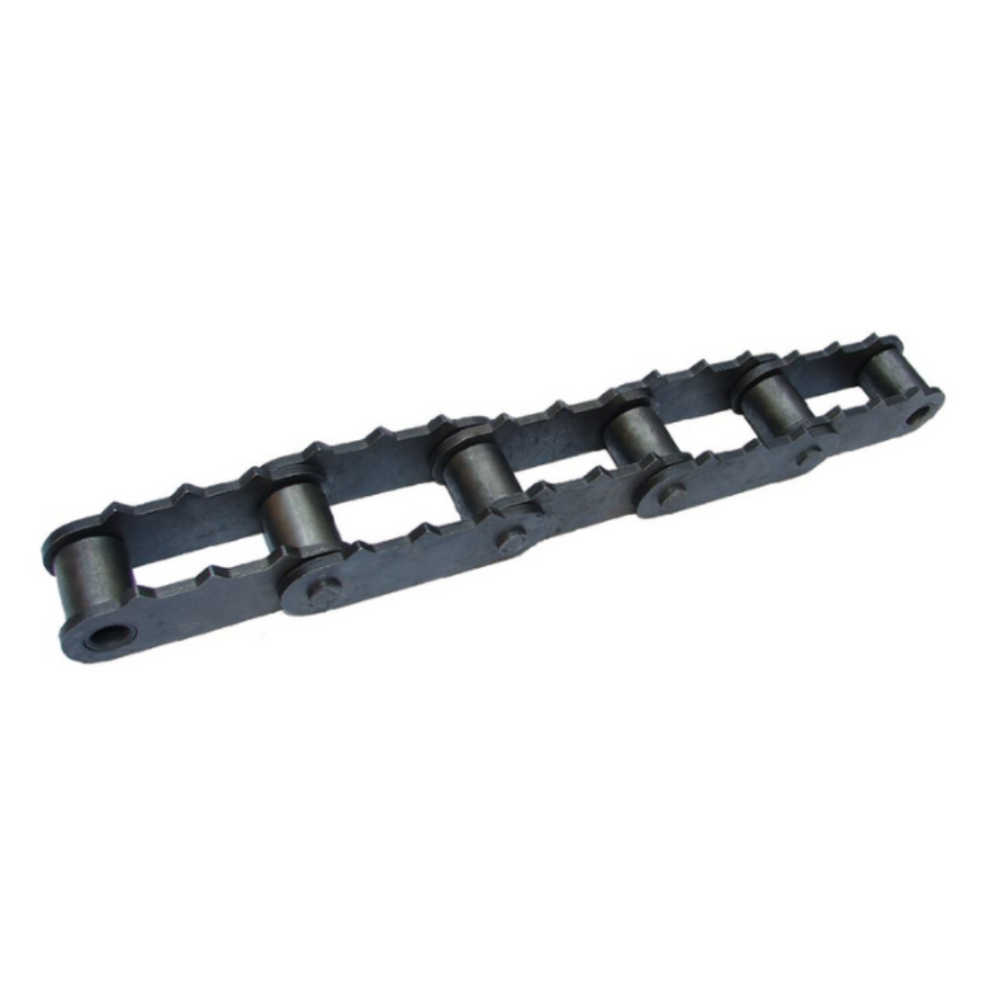

Sharp Top Chains are designed to provide enhanced material engagement and reliable conveying performance in demanding industrial environments. Featuring serrated top profiles, these chains deliver increased gripping power to reduce slippage and improve control throughout the conveyor system.
Commonly used in lumber, forestry, and wood processing operations, Sharp Top Chains are ideal for applications where positive traction is essential. Their aggressive design helps move materials smoothly through equipment such as canters, butt end reducers, and other heavy-duty conveying systems.
Constructed with solid bushings and solid rollers, these chains offer improved wear resistance and extended service life. Heat treated and shot peened components increase fatigue strength, while a pre-applied anti-rust lubricant provides added protection against corrosion and premature wear.
Key Features:
- High-Traction Sharp Top Design
- Serrated Chain Tops Enhance grip on conveyed materials, improving stability and minimizing slippage.
- Ideal for Lumber & Forestry Applications
- Designed for demanding environments such as timber processing, wood handling, and heavy-duty conveying systems.
-
Solid Bushing & Solid Roller Construction
- Provides increased durability, reduced wear, and longer operational life under continuous use.
- Heat Treated & Shot Peened Components
- Improves fatigues strength and helps prevent cracking in high-impact applications.
Specifications
- Chain Size: 80-1
- Style: 3-points every second pitch
- Pitch: 1”
- Inside Width Min.: 0.625”
- Roller Diameter Max: 0.625”
- Outer Plate Height Max: 1.15”
- Inner Plate Thickness Max: 0.118”
- Outer Plate Thickness Max: 0.118”
- Pin Diameter Max: 0.312”
- Pin Length Max: 1.287”
- Inner Plate Height Max: 0.909”
- Tooth Height: 0.13”
- Tooth Spacing: 0.375”
- Tooth Angle: 90
- Tensile Strength Min.: 12,499 lbs
- Rated Working Load: 3,750 lbs
- Weight Per Foot: 2 lbs
