Description

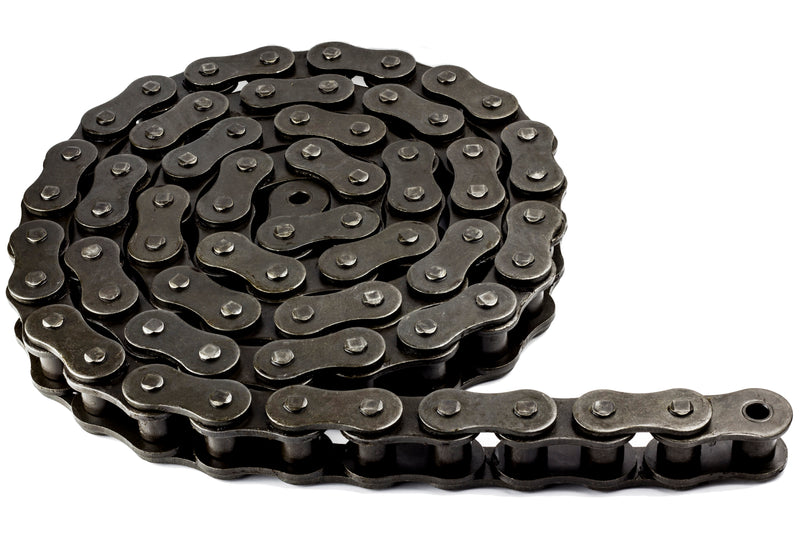

This ANSI #80 roller chain is designed to deliver reliable strength, smooth operation, and consistent performance for industrial and mechanical power transmission applications. Manufactured from durable carbon steel with precision-matched components, it ensures proper fit, smooth sprocket engagement, and dependable wear performance when properly installed and maintained. This chain has an average tensile strength of approximately 14,500lbs and is supplied in a standard 10 foot length, with additional lengths available. Manufactured to ANSI dimensional standards for compatibility with #80 sprockets and components. A matching connecting link is included for convenient installation, and additional connecting links and offset links are available and recommended to keep on hand to minimize downtime and allow for quick adjustments or repairs. Compatible sprockets are offered in various tooth counts and bore sizes.
Not sure if this is the correct size for your application? Our team is available to assist with fit confirmation or accessory selection.

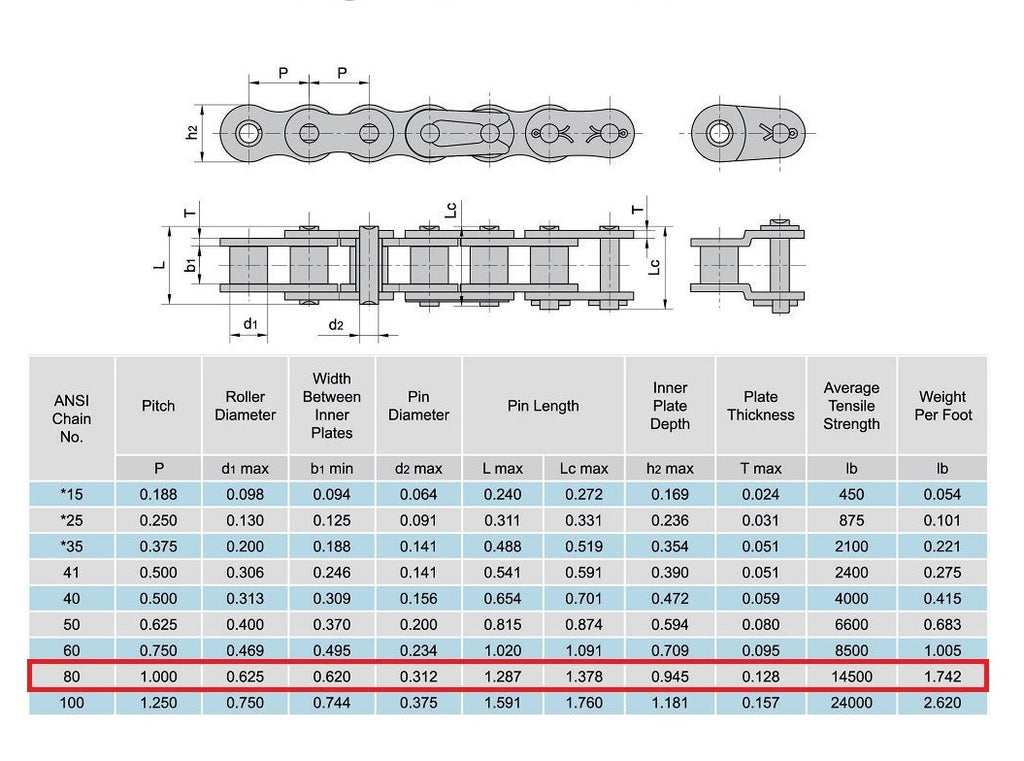

80 Roller Chain Specifications
Pitch Size: 1.000 Inch
Roller Diameter: 0.625 Inch
Width Between Inner Plates: 0.620 Inch
Pin Diameter: 0.312 Inch
Pin Length L Max: 1.287 Inch
Pin Length Lc Max: 1.378 Inch
Inner Plate Depth: 0.945 Inch
Plate Thickness: 0.128 Inch
Average Tensile Strength: 14500 lb
Connecting Links Included: 1 Link
Material: Carbon Steel
Length: 10 Feet
Weight Per Foot: 1.742 lbs
