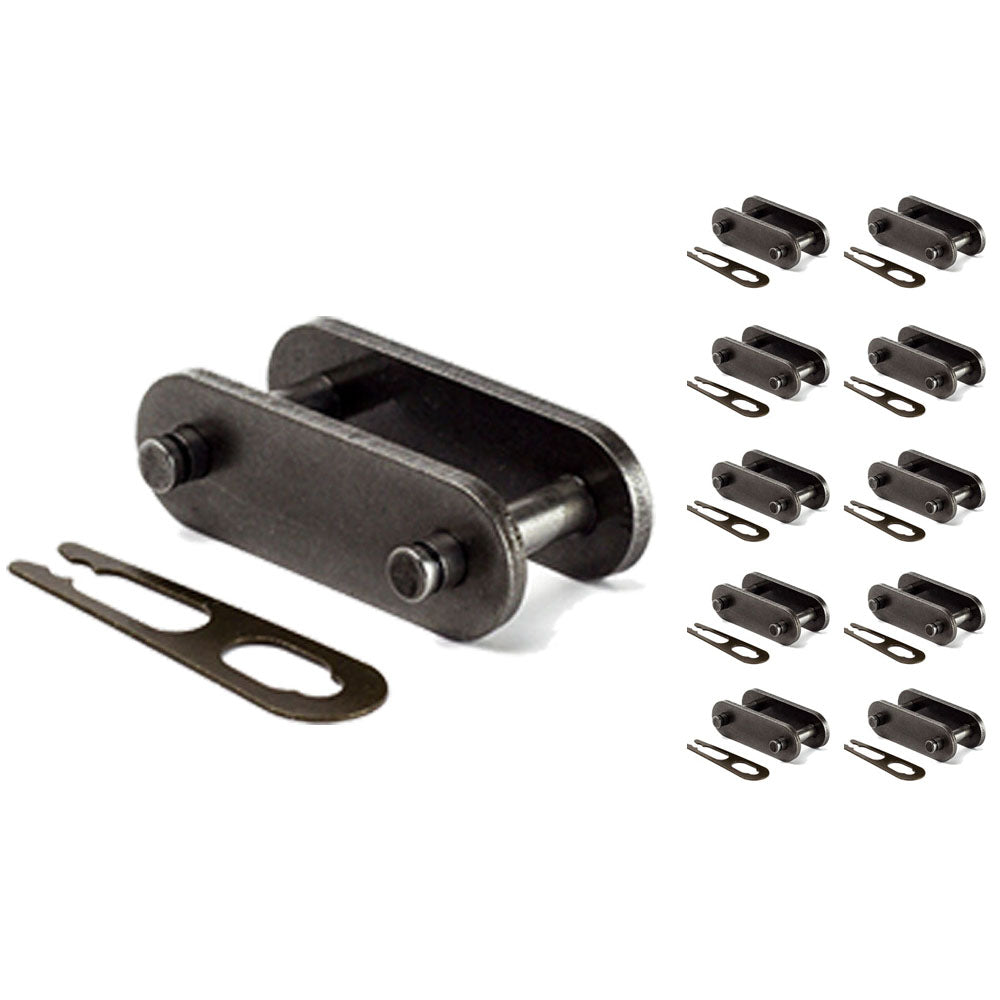

The C2040 Standard Conveyor Chain connecting link is designed for use with compatible C2040 chain assemblies. It provides a connection between compatible chain ends for installation, replacement, and maintenance.
Manufactured from carbon steel, this component is intended for conveyors, packaging equipment, agricultural machinery, manufacturing systems, and general material handling applications. The clip type connection should be installed using the appropriate procedures and tools. Verify chain series, dimensions, and compatibility before installation.
C2040 Connecting Link Specifications
Pitch Size: 1 Inch
Roller Diameter: 0.312 Inch
Width Between Inner Plates: 0.309 Inch
Pin Diameter: 0.156 Inch
Pin Length L Max: 0.654 Inch
Pin Length Lc Max: 0.701 Inch
Inner Plate Depth: 0.472 Inch
Plate Thickness: 0.059 Inch
Average Tensile Strength: 3754 lb
Material: Carbon Steel
Weight Per Foot: 0.335 lbs
Quantity Per Order: 10PCS
