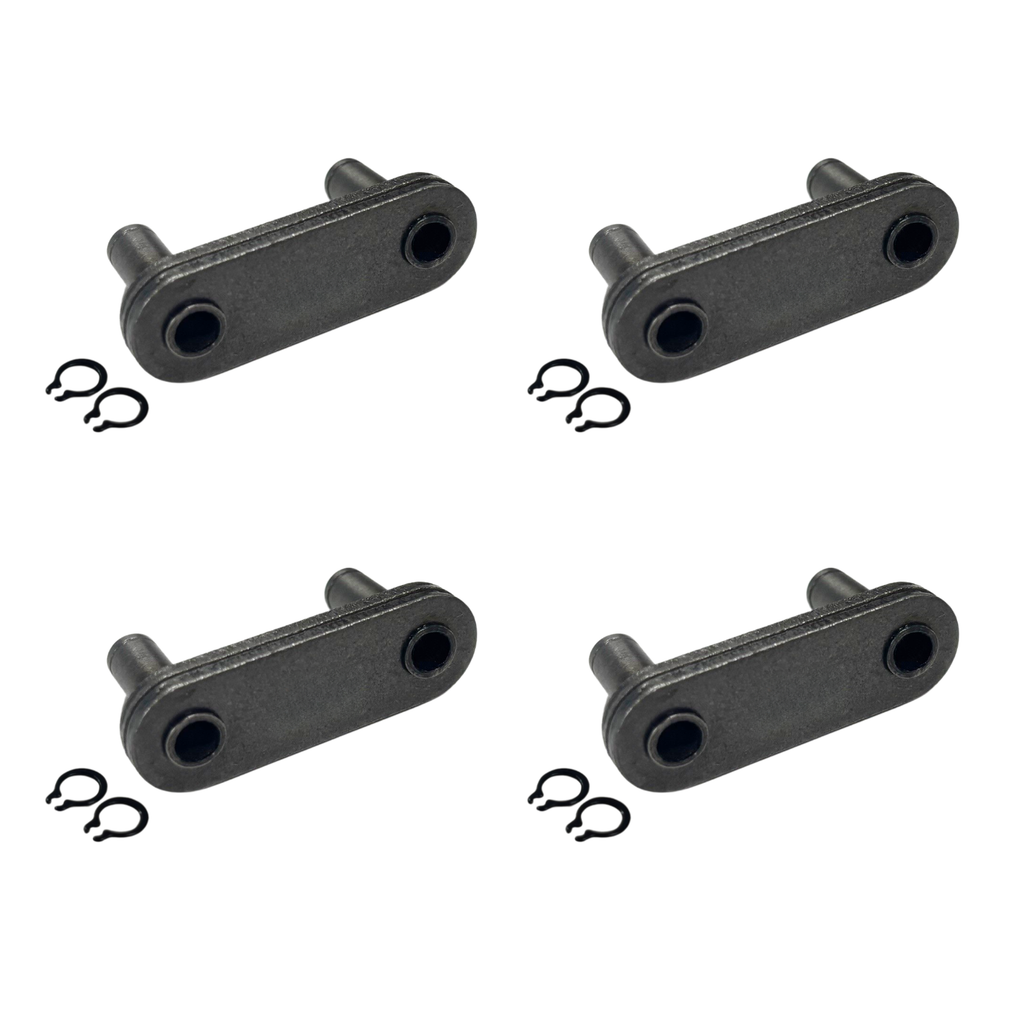

The C2040HP Standard Hollow Pin Conveyor Chain connecting link is designed for use with compatible C2040HP chain assemblies. It provides a connection between compatible chain ends for installation, replacement, and maintenance.
Manufactured from carbon steel, this component is intended for packaging equipment, automation systems, food processing machinery, material handling equipment, and custom conveyor applications. The round clip type connection should be installed using the appropriate procedures and tools. Verify chain series, dimensions, and compatibility before installation.
C2040HP Connecting Link Specifications
Pitch Size: 1 Inch
Roller Diameter: 0.312 Inch
Width Between Inner Plates: 0.309 Inch
Pin Diameter: 0.222 Inch
Pin Length L Max: 0.157 Inch
Pin Length Lc Max: 0.650 Inch
Inner Plate Depth: 0.472 Inch
Plate Thickness: 0.472 Inch
Average Tensile Strength: 2833 lb
Weight Per Foot: 0.308 lbs
Material: Carbon Steel
Quantity Per Order: 4PCS
