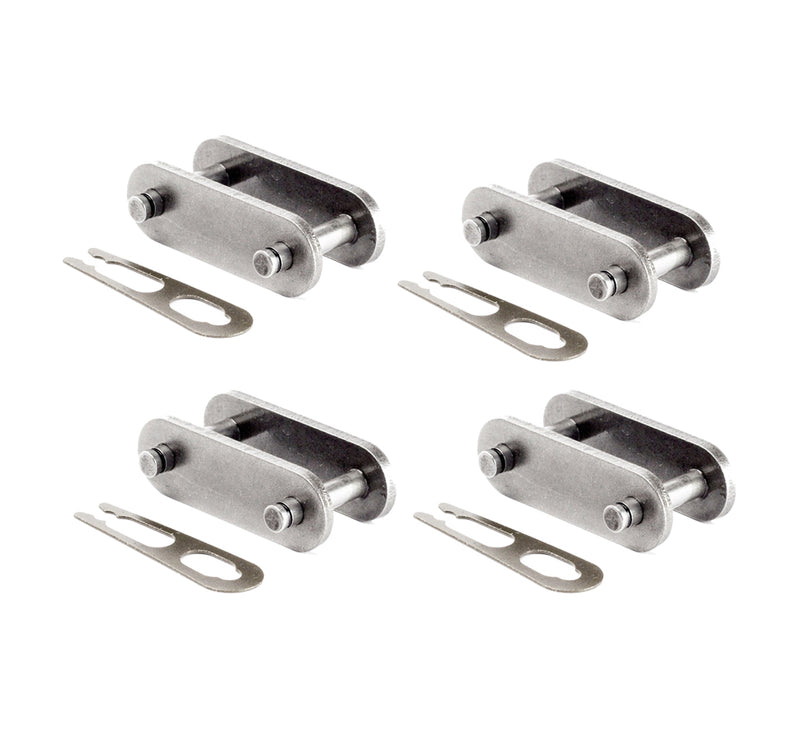

The C2042SS Oversized Roller Stainless Steel Conveyor Chain connecting link is designed for use with compatible C2042SS chain assemblies. It provides a connection between compatible chain ends for installation, replacement, and maintenance.
Manufactured from stainless steel, this component is intended for food processing, washdown conveyors, corrosive material handling, and conveyor systems. The clip type connection should be installed using the appropriate procedures and tools. Verify chain series, dimensions, and compatibility before installation.

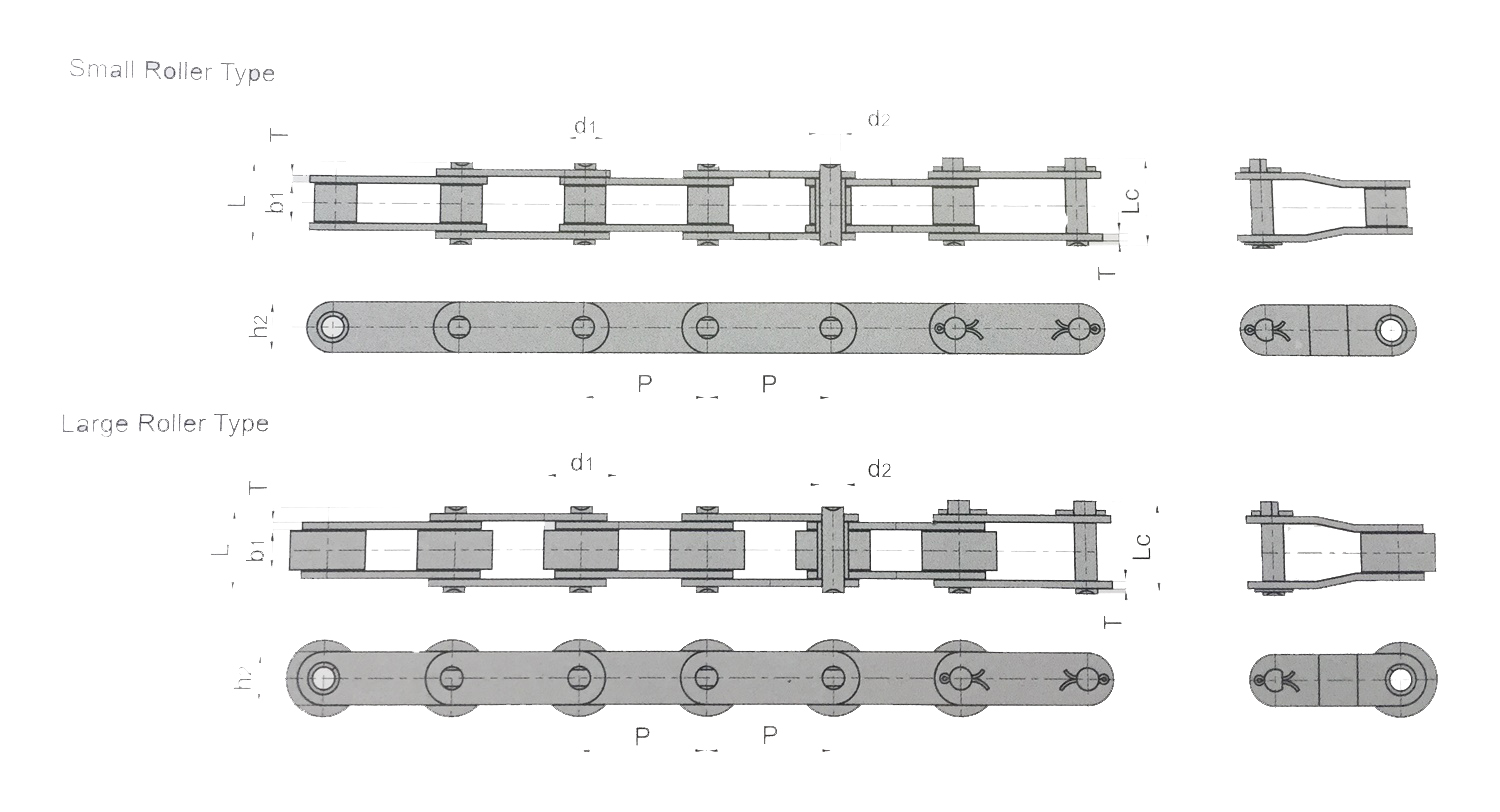

C2042SS Connecting Link Specifications
Pitch Size: 0.625 Inch
Roller Diameter: 0.625 Inch
Width Between Inner Plates: 0.309 Inch
Pin Diameter: 0.156 Inch
Pin Length L Max: 0.654 Inch
Pin Length Lc Max: 0.701 Inch
Inner Plate Depth: 0.472 Inch
Plate Thickness: 0.059 Inch
Average Tensile Strength: 2182 lb
Material: Stainless Steel
Weight Per Foot: 0.570 lbs
Quantity Per Order: 4PCS
