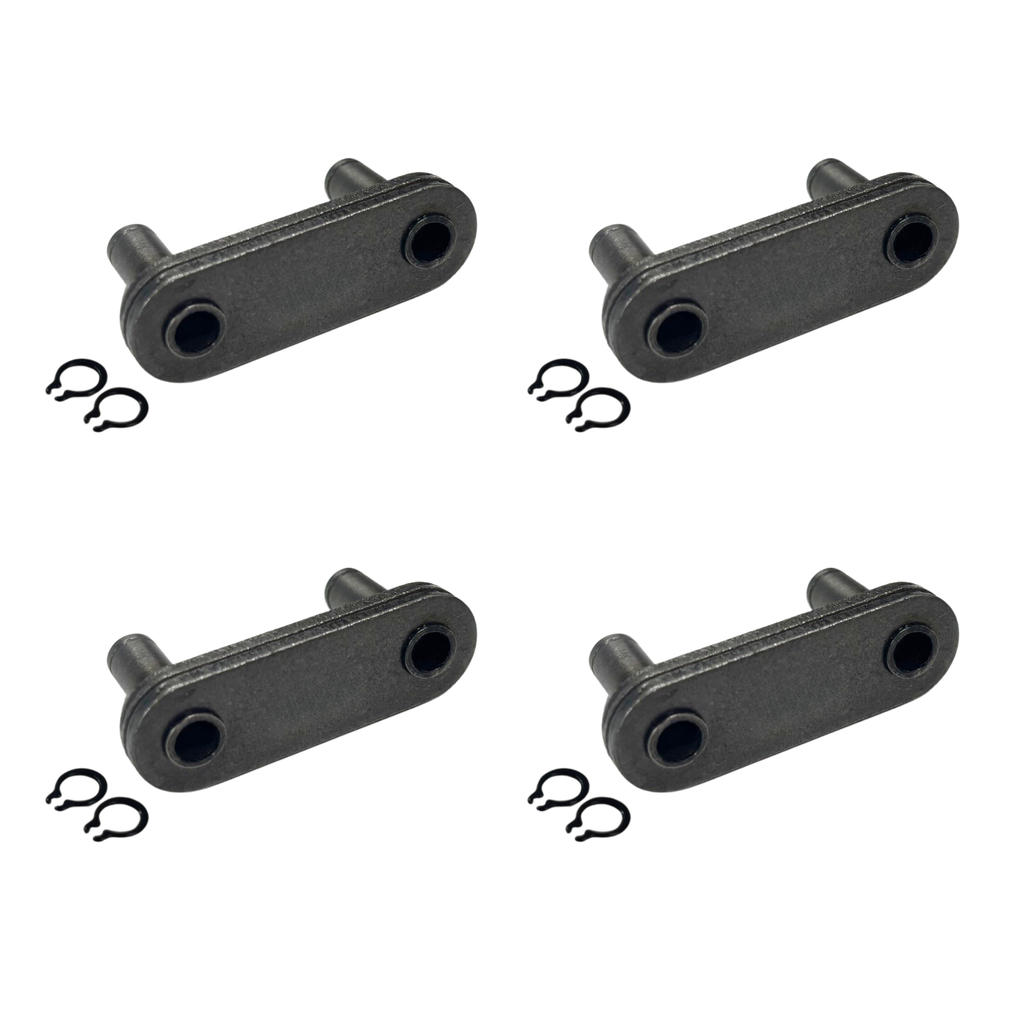

The C2050HP Standard Hollow Pin Conveyor Chain connecting link is designed for use with compatible C2050HP chain assemblies. It provides a connection between compatible chain ends for installation, replacement, and maintenance.
Manufactured from carbon steel, this component is intended for packaging equipment, automation systems, food processing machinery, material handling equipment, and custom conveyor applications. The round clip type connection should be installed using the appropriate procedures and tools. Verify chain series, dimensions, and compatibility before installation.
C2050HP Connecting Link Specifications
Pitch Size: 1.25 Inch
Roller Diameter: 0.400 Inch
Width Between Inner Plates: 0.370 Inch
Pin Diameter: 0.284 Inch
Pin Length L Max: 0.807 Inch
Pin Length Lc Max: 0.858 Inch
Inner Plate Depth: 0.591 Inch
Plate Thickness: 0.080 Inch
Average Tensile Strength: 5126 lb
Weight Per Foot: 0.509 lbs
Material: Carbon Steel
Quantity Per Order: 4PCS
