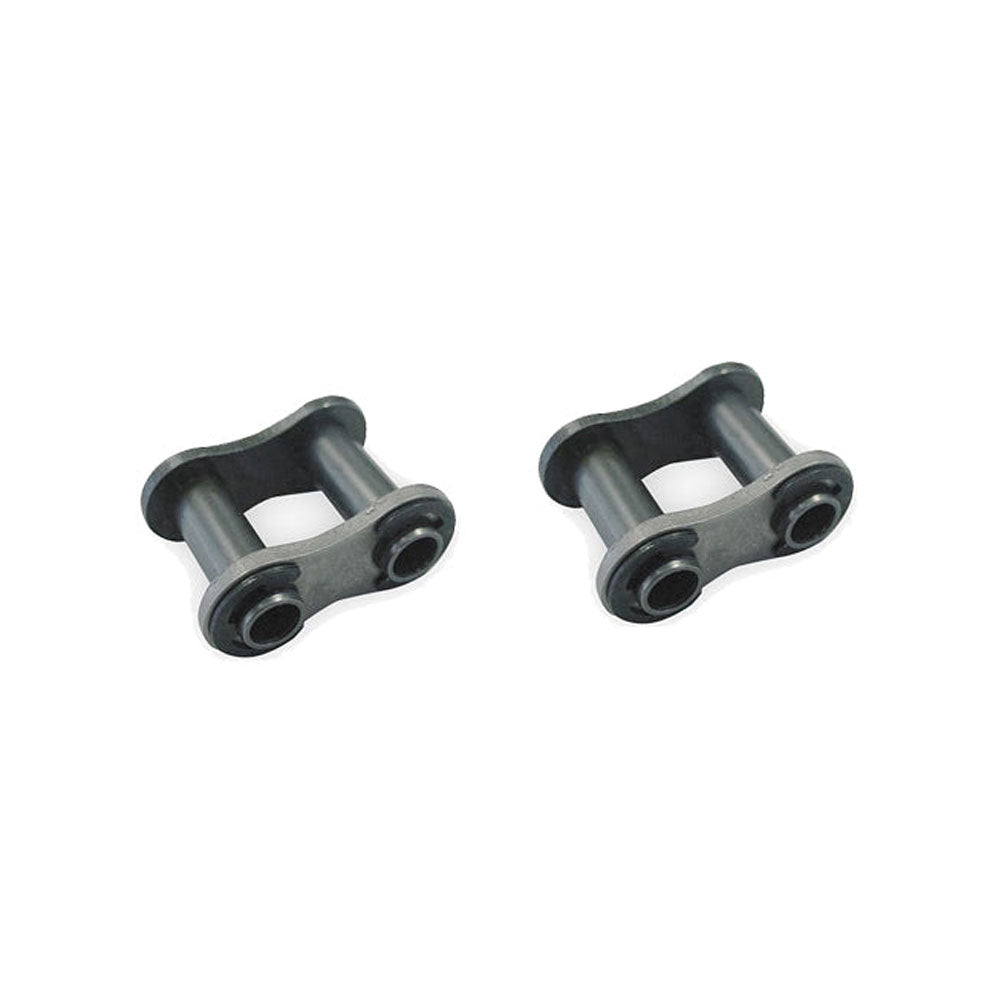

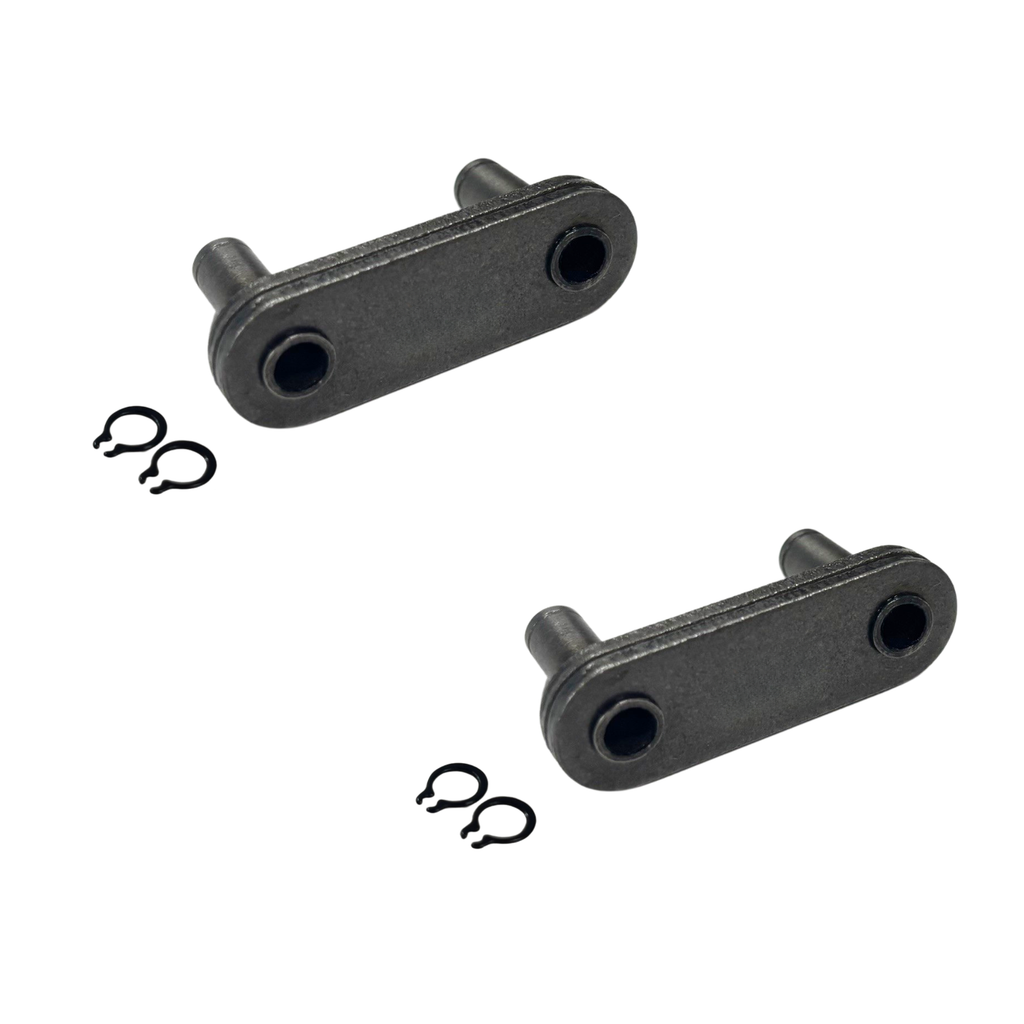

The C2052HP Oversized Roller Conveyor Chain connecting link is designed for use with compatible C2052HP chain assemblies. It provides a connection between compatible chain ends for installation, replacement, and maintenance.
Manufactured from carbon steel, this component is intended for specialized conveying systems that require customized attachments, reduced rolling resistance, and dependable operation. The round clip type connection should be installed using the appropriate procedures and tools. Verify chain series, dimensions, and compatibility before installation.
C2052HP Connecting Link Specifications
Pitch Size: 1.25 Inch
Roller Diameter: 0.750 Inch
Width Between Inner Plates: 0.370 Inch
Pin Diameter: 0.200 Inch
Pin Length L Max: 0.815 Inch
Pin Length Lc Max: 0.874 Inch
Inner Plate Depth: 0.591 Inch
Plate Thickness: 0.080 Inch
Average Tensile Strength: 3455 lb
Weight Per Foot: 0.864 lbs
Material: Carbon Steel
Quantity Per Order: 2PCS
