Description
Jeremywell C2062 Oversized Roller Conveyor Chain is designed for conveyor systems that benefit from lower rolling resistance and smoother product movement. Featuring rollers larger than the chain side plates, oversized roller chains are engineered to ride directly on guide rails or conveyor tracks, helping reduce friction, minimize wear, and improve conveying efficiency.
Manufactured from heat-treated alloy steel for exceptional strength and durability, these chains are ideal for long conveyor runs and applications where products or fixtures are supported by the rollers. The oversized roller design helps reduce drag on conveyor systems while providing smooth, reliable operation under continuous use.
Commonly used in material handling, manufacturing, packaging, warehouse automation, and industrial conveying systems, Jeremywell oversized roller conveyor chains deliver dependable performance while helping extend the service life of both the chain and conveyor components.

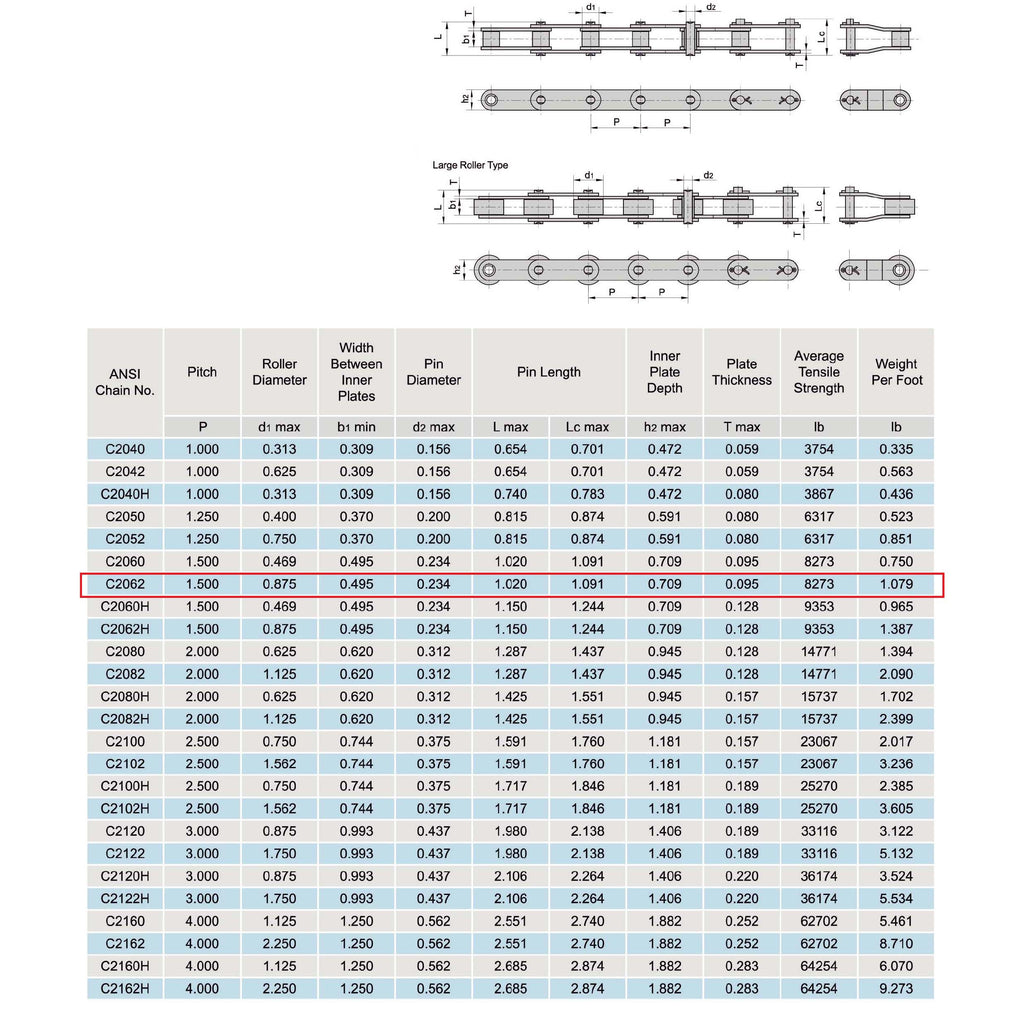

C2062 Chain Specifications
Pitch Size: 1.500 Inch
Roller Diameter: 0.875 Inch
Width Between Inner Plates: 0.495 Inch
Pin Diameter: 0.234 Inch
Pin Length L Max: 1.020 Inch
Pin Length Lc Max: 1.091 Inch
Inner Plate Depth: 0.709 Inch
Plate Thickness: 0.095 Inch
Average Tensile Strength: 8273 lb
Material: Carbon Steel
Length: 10 Feet
Weight Per Foot: 1.079 lb/ft
Common Applications
- Conveyor tracks
- Material handling systems
- Packaging equipment
- Manufacturing lines
- Warehouse conveyors
- Industrial automation
- Distribution centers
