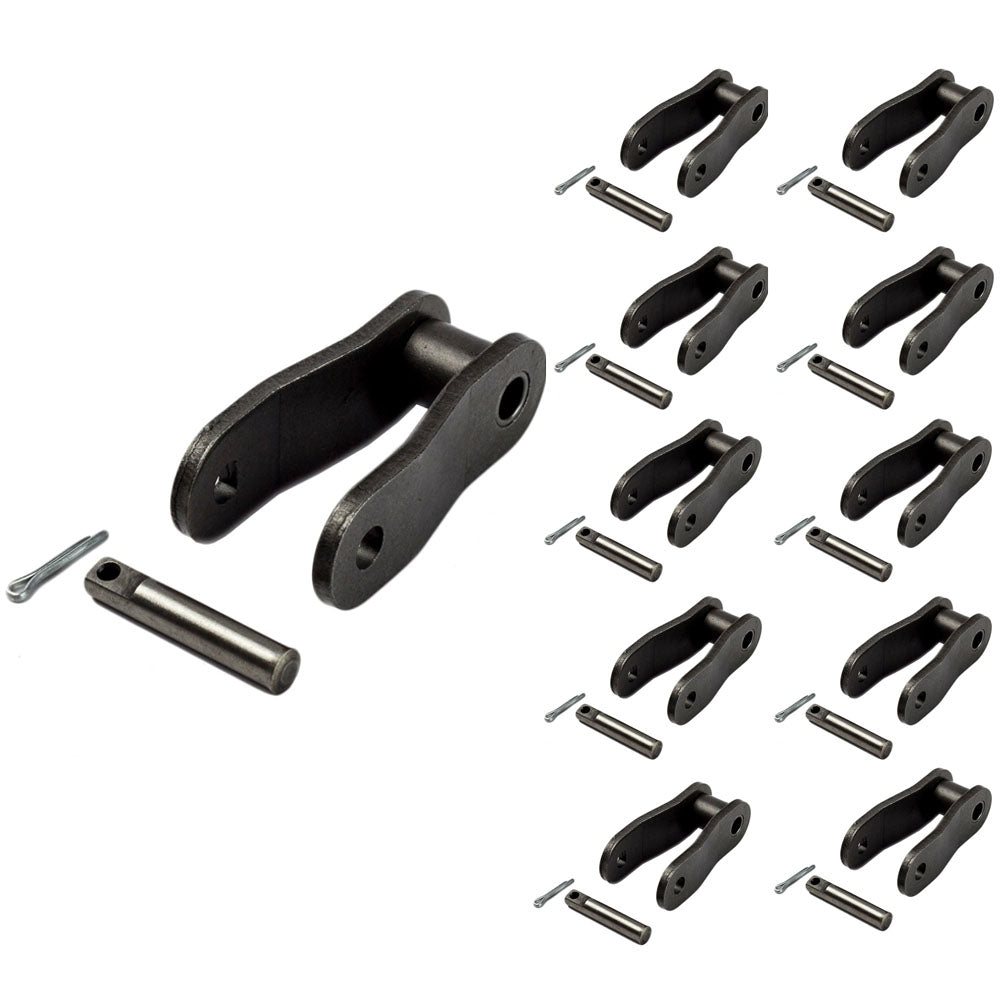

The C2080 Standard Conveyor Chain offset half link is designed for use with compatible C2080 standard conveyor chain assemblies. For conventional compatible roller chains, an offset link allows a one-pitch chain length adjustment when a standard even-pitch configuration is not suitable.
Manufactured from carbon steel, this component is intended for conveyors, packaging equipment, agricultural machinery, manufacturing systems, and general material handling applications. The cottered connection must be installed correctly, and confirm the chain dimensions, series, and load requirements before installation.
C2080 Offset Link Specifications
Pitch Size: 2 Inch
Roller Diameter: 0.625 Inch
Width Between Inner Plates: 0.620 Inch
Pin Diameter: 0.312 Inch
Pin Length L Max: 1.287 Inch
Pin Length Lc Max: 1.437 Inch
Inner Plate Depth: 0.945 Inch
Plate Thickness: 0.128 Inch
Average Tensile Strength: 14771 lbs
Weight Per Foot: 1.394 lbs
Material: Carbon Steel
Quantity Per Order: 10PCS
