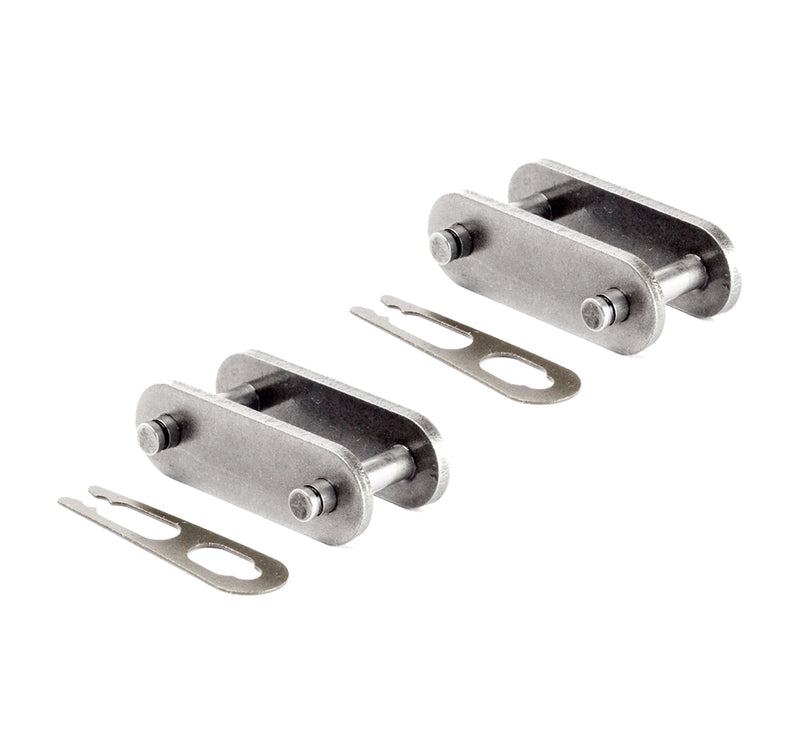

The C2080HSS Heavy Duty Stainless Steel Conveyor Chain connecting link is designed for use with compatible C2080HSS chain assemblies. It provides a connection between compatible chain ends for installation, replacement, and maintenance.
Manufactured from stainless steel, this component is intended for heavy-duty food processing, washdown conveyors, corrosive environments, and high-load material handling. The clip type connection should be installed using the appropriate procedures and tools. Verify chain series, dimensions, and compatibility before installation.
C2080HSS Connecting Link Specifications
Pitch Size: 2 Inch
Roller Diameter: 0.625 Inch
Width Between Inner Plates: 0.620 Inch
Pin Diameter: 0.312 Inch
Pin Length L Max: 1.425 Inch
Pin Length Lc Max: 1.551 Inch
Inner Plate Depth: 0.945 Inch
Plate Thickness: 0.157 Inch
Average Tensile Strength: 8841 lb
Material: Stainless Steel
Weight Per Foot: 1.722 lbs
Quantity Per Order: 2PCS
