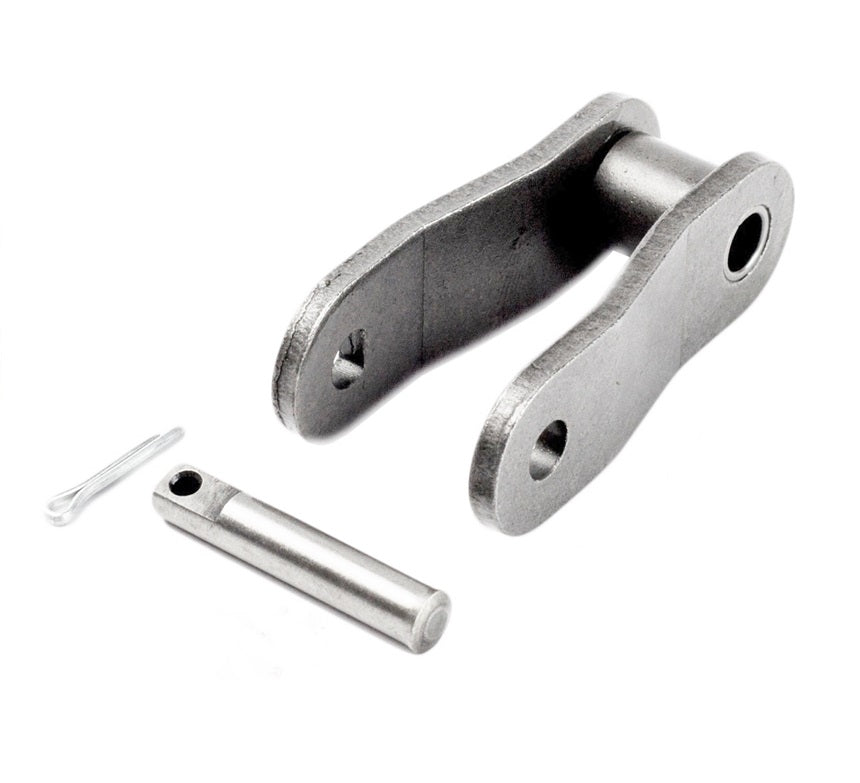

The C2082SS Oversized Roller Stainless Steel Conveyor Chain offset half link is designed for use with compatible C2082SS oversized roller stainless steel conveyor chain assemblies. For conventional compatible roller chains, an offset link allows a one-pitch chain length adjustment when a standard even-pitch configuration is not suitable.
Manufactured from stainless steel, this component is intended for food processing, washdown conveyors, corrosive material handling, and conveyor systems. The cottered connection must be installed correctly, and confirm the chain dimensions, series, and load requirements before installation.
C2082SS Offset Link Specifications
Pitch Size: 2 Inch
Roller Diameter: 1.125 Inch
Width Between Inner Plates: 0.620 Inch
Pin Diameter: 0.312 Inch
Pin Length L Max: 1.287 Inch
Pin Length Lc Max: 1.437 Inch
Inner Plate Depth: 0.945 Inch
Plate Thickness: 0.128 Inch
Average Tensile Strength: 8841 lb
Weight Per Foot: 2.117 lbs
Material: Stainless Steel
Quantity Per Order: 1PC
