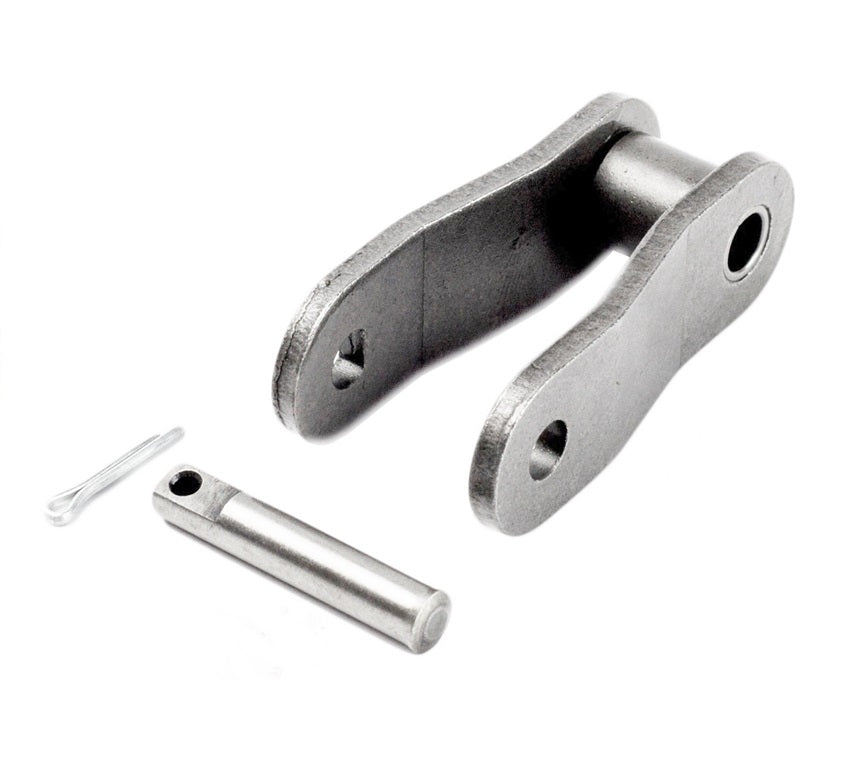

The C2100HSS Heavy Duty Stainless Steel Conveyor Chain offset half link is designed for use with compatible C2100HSS heavy duty stainless steel conveyor chain assemblies. For conventional compatible roller chains, an offset link allows a one-pitch chain length adjustment when a standard even-pitch configuration is not suitable.
Manufactured from stainless steel, this component is intended for heavy-duty food processing, washdown conveyors, corrosive environments, and high-load material handling. The cottered connection must be installed correctly, and confirm the chain dimensions, series, and load requirements before installation.
C2100HSS Offset Link Specifications
Pitch Size: 2 Inch
Roller Diameter: 1.125 Inch
Width Between Inner Plates: 0.620 Inch
Pin Diameter: 0.312 Inch
Pin Length L Max: 1.287 Inch
Pin Length Lc Max: 1.437 Inch
Inner Plate Depth: 0.945 Inch
Plate Thickness: 0.128 Inch
Average Tensile Strength: 8841 lb
Weight Per Foot: 2.385 lbs
Material: Stainless Steel
Quantity Per Order: 1PC
