Description

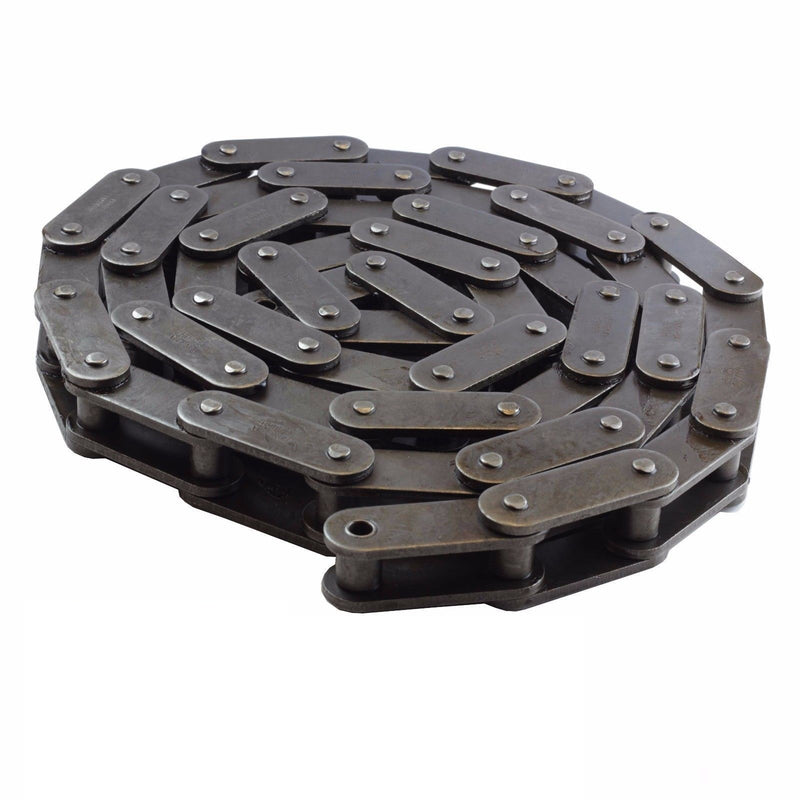

Jeremywell C2160H Heavy Duty Double Pitch Conveyor Chain is built for higher working loads and demanding conveyor applications where added strength and durability are required. Featuring thicker side plates than standard double pitch chains, this heavy-duty conveyor chain provides increased fatigue resistance, improved wear life, and dependable performance in continuous-duty industrial environments.
Ideal for manufacturing facilities, agricultural equipment, lumber processing, packaging lines, and heavy material handling systems, Jeremywell heavy duty conveyor chains are designed to withstand repetitive loads while maintaining smooth and reliable conveyor operation.
Complete your installation with compatible connecting links and offset links designed to keep your equipment operating reliably.
C2160H Chain Specifications
Pitch Size: 4.000 Inch
Roller Diameter: 1.125 Inch
Width Between Inner Plates: 1.250 Inch
Pin Diameter: 0.562 Inch
Pin Length L Max: 2.685 Inch
Pin Length Lc Max: 2.874 Inch
Inner Plate Depth: 1.882 Inch
Plate Thickness: 0.283 Inch
Average Tensile Strength: 64254 lb
Material: Carbon Steel
Length: 10 Feet
Weight Per Foot: 6.070 lbs
Common Applications
- Heavy-duty conveyor systems
- Material handling equipment
- Lumber and forestry equipment
- Agricultural machinery
- Manufacturing and assembly lines
- Packaging equipment
- Pallet and skid conveyors
