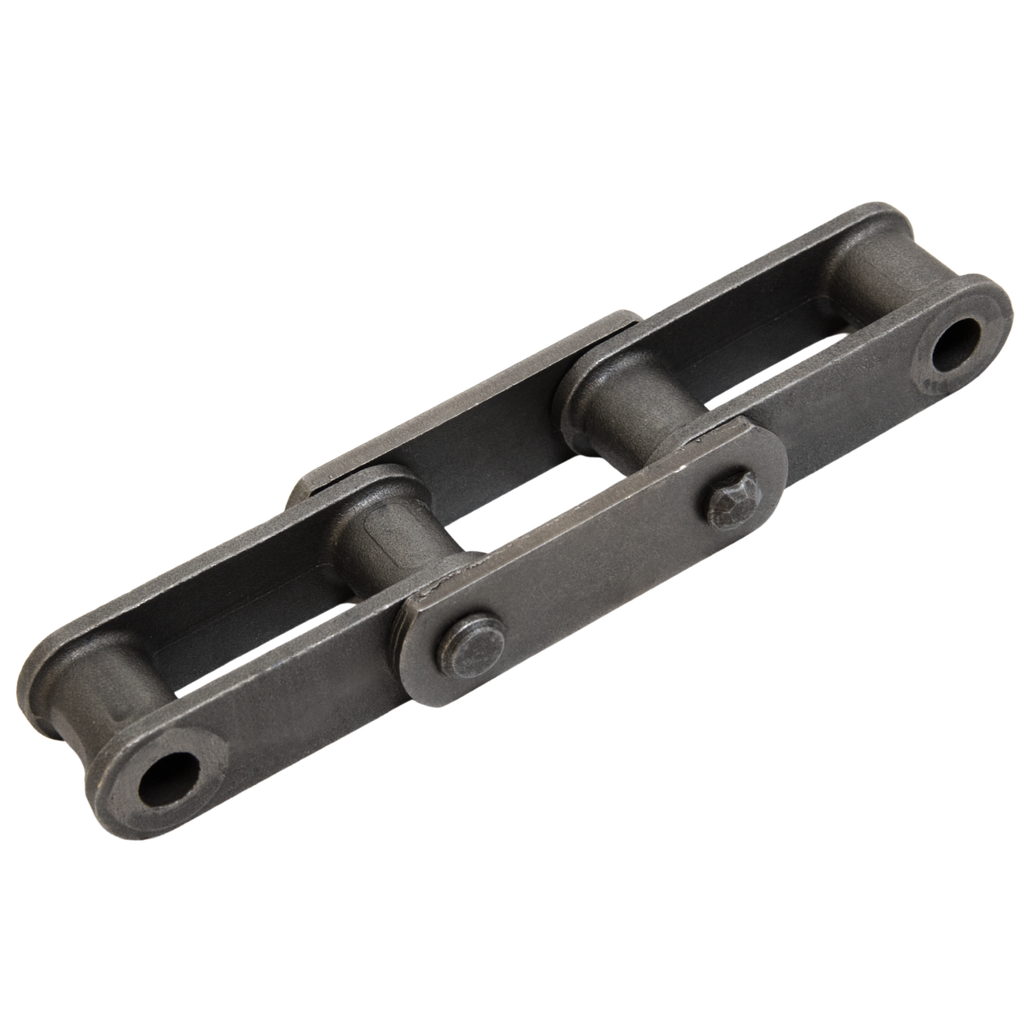

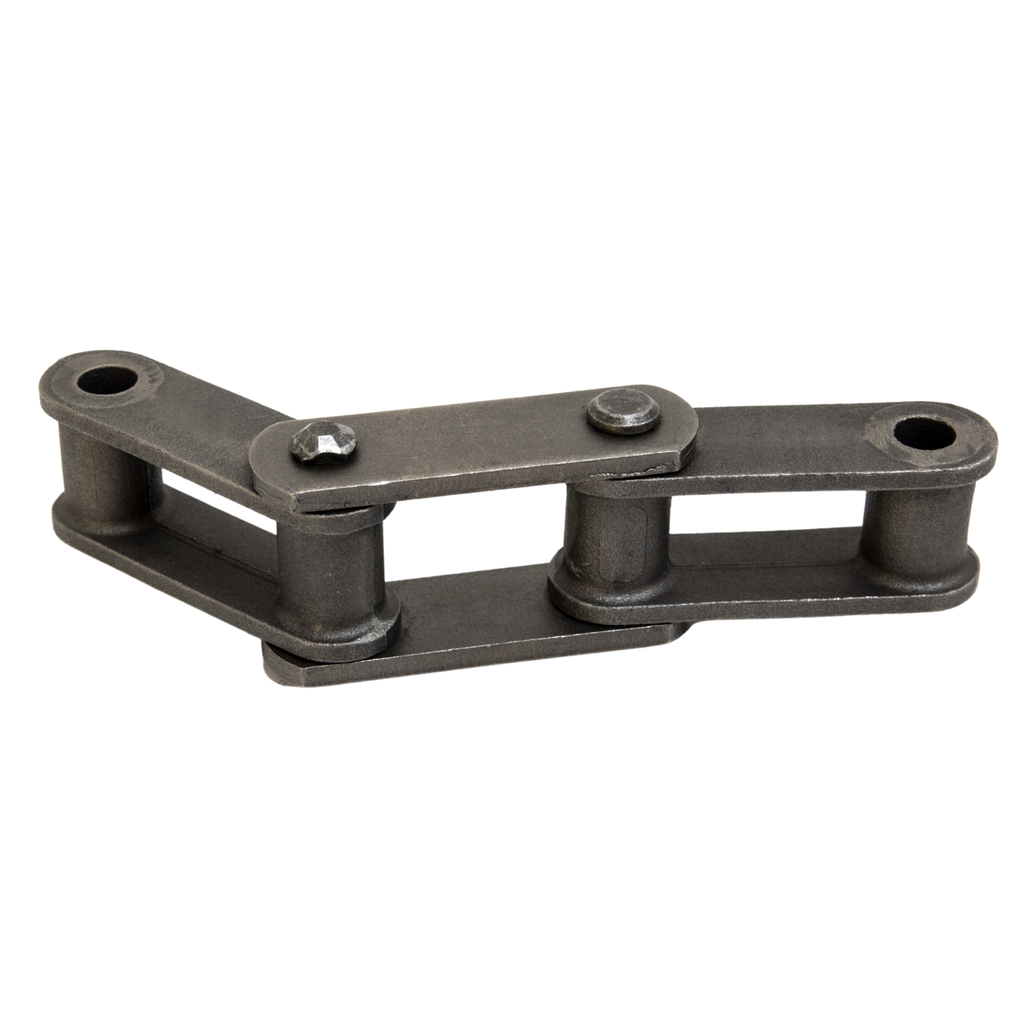

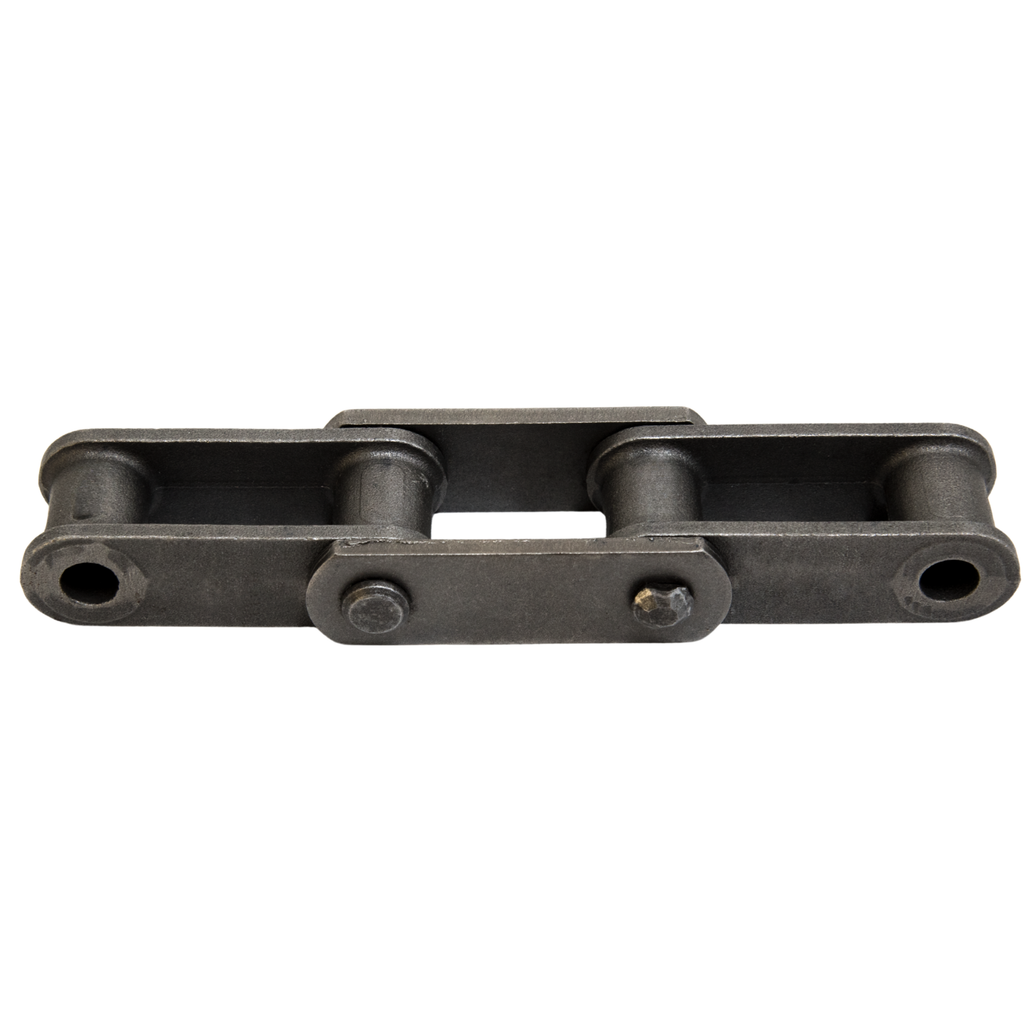

The C55 Cast Combination Chain is the smallest standard size in the cast combination chain series, making it an excellent choice for light-duty conveying and elevating applications where space, weight, and efficient material handling are important. Built with durable riveted construction, C55 chain is designed to convey both abrasive and non-abrasive materials while delivering dependable performance in demanding industrial environments.
Its symmetrical cast combination links allow for operation in either direction of travel, providing flexibility across a variety of conveyor system designs. Commonly used in agriculture, grain handling, forest products, car wash systems, and general material handling equipment, C55 cast combination chain offers a reliable solution for applications that require a compact yet durable conveyor chain.
Common Applications
- Bucket elevators
- Flight conveyors
- Grain handling equipment
- Forest products and sawmill operations
- Sugar processing facilities
- Car wash conveyor systems
- General material handling equipment
Important Note: C55 Cast Combination Chain is intended for conveying and elevating applications and is not recommended for power transmission or drive chain applications.
Specifications
Chain Size: C55
Pitch: 1.631”
Overall Width: 1.970”
Pin Diameter: 0.375”
Sidebar Height: 0.750”
Barrel Diameter: 0.720”
Head of Pin to Center Line: 0.970”
End of Pin to Center Line: 1.000”
Sidebar Thickness: 0.190”
Max. Allowable Sprocket Face: 0.690”
Barrel Length: 1.250”
Tensile Strength: 12.150 LB
Links Per 10ft” 74
Material: Carbon Steel
Length: 10ft
