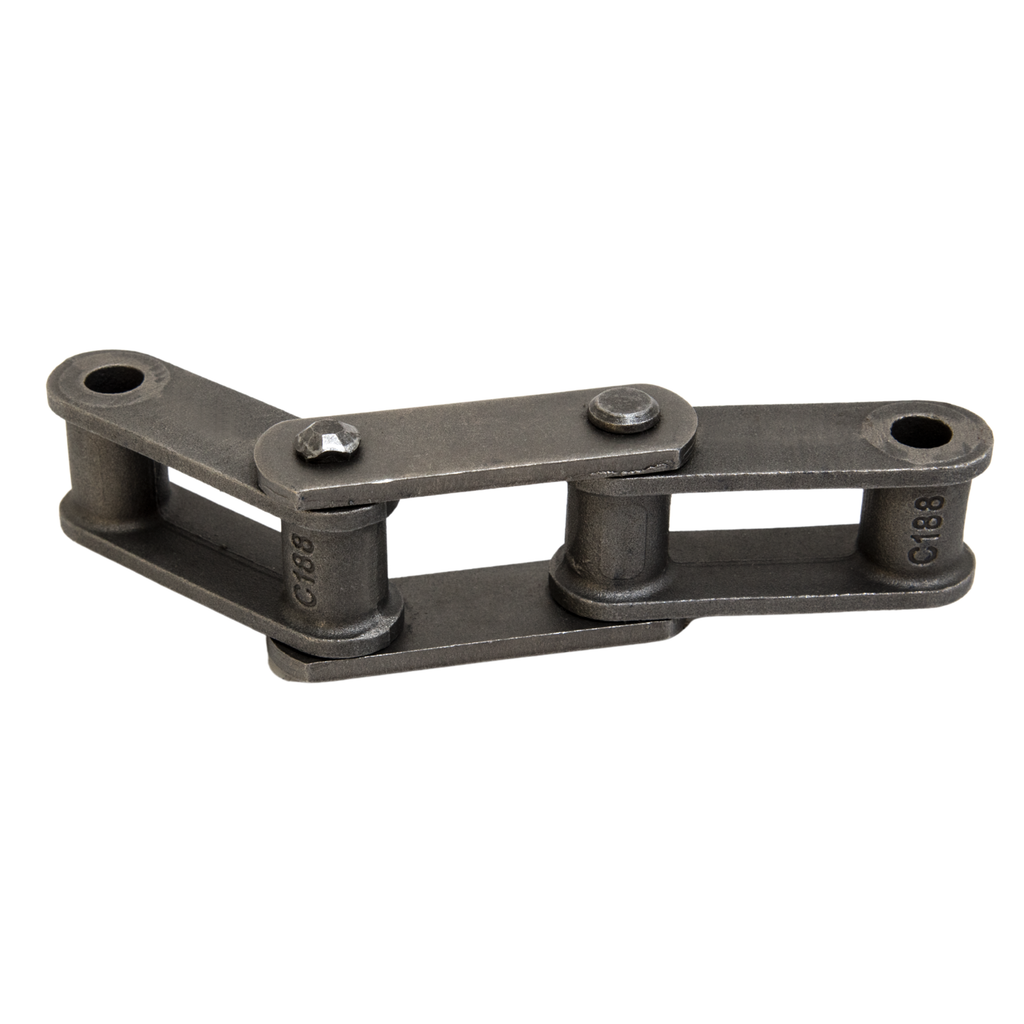

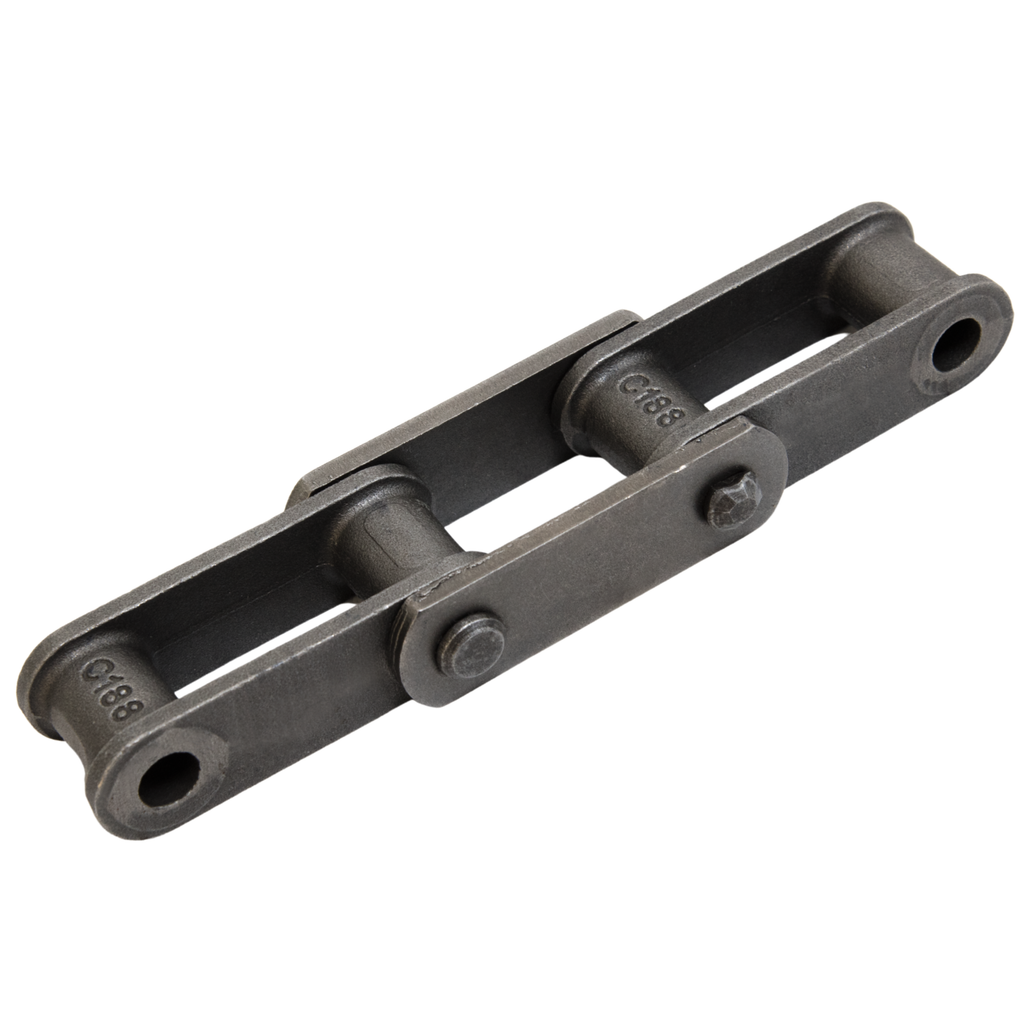

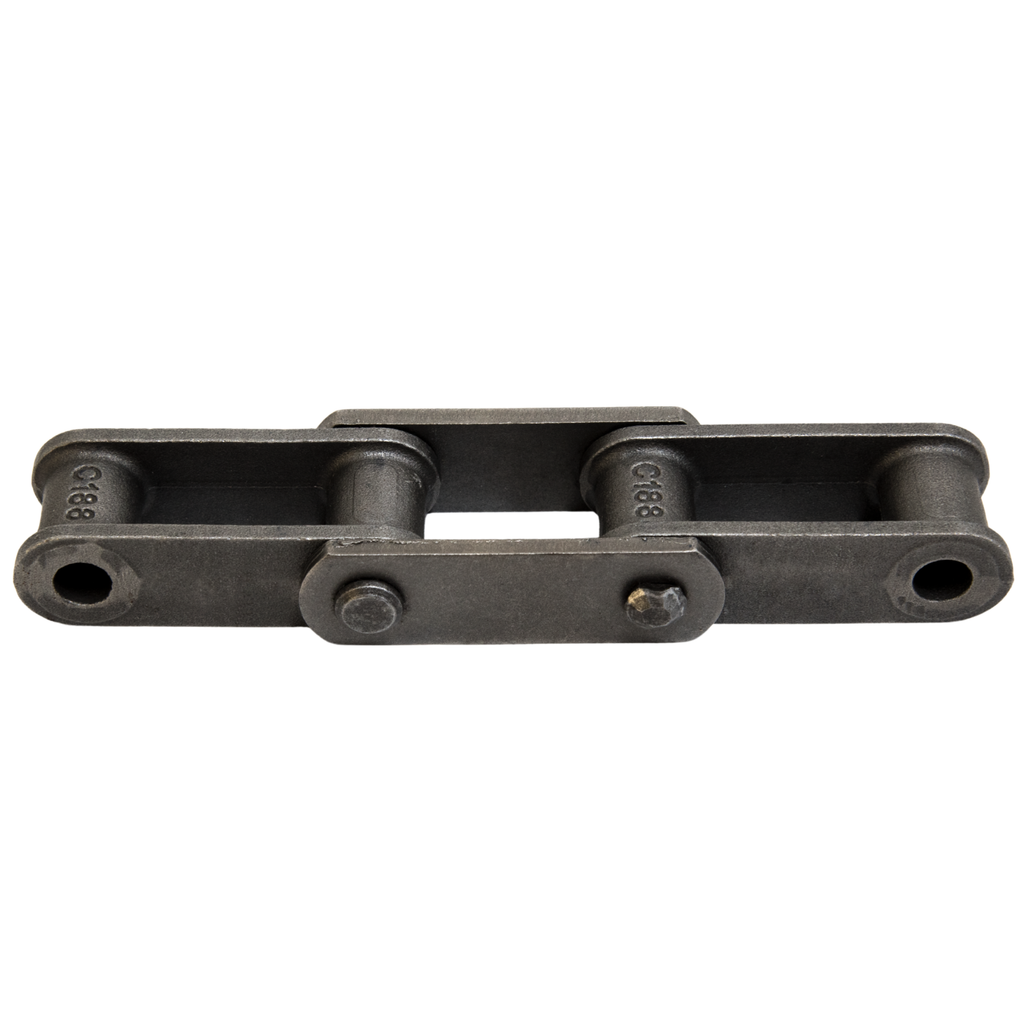

The C188 Cast Combination Chain is designed for conveying and elevating a wide range of abrasive and non-abrasive materials in demanding industrial environments. Featuring durable riveted construction, this chain is commonly used in material handling systems where strength, reliability, and long service life are essential.
Cast combination links are symmetrical, allowing the chain to operate efficiently in either direction of travel. This versatile design makes C188 chain a popular choice across industries such as agriculture, forestry, grain processing, sugar production, and car wash conveyor systems.
Common Applications
- Bucket elevators
- Flight conveyors
- Grain handling equipment
- Forest products and sawmill operations
- Sugar processing facilities
- Car wash conveyor systems
- General material handling equipment
Important Note: C188 Cast Combination Chain is intended for conveying and elevating applications and is not recommended for power transmission or drive chain applications.
Specifications
Chain Size: C188
Pitch: 2.609”
Overall Width: 2.500”
Pin Diameter: 0.500”
Sidebar Height: 1.120”
Barrel Diameter: 0.880”
Head of Pin to Center Line: 1.250”
End of Pin to Center Line: 1.250”
Sidebar Thickness: 0.250”
Max. Allowed Sprocket Face: 0.940”
Barrel Length: 1.560”
Tensile Strength: 18,900 LB
Links Per 10ft: 46
Material: Carbon Steel
Length: 10ft
