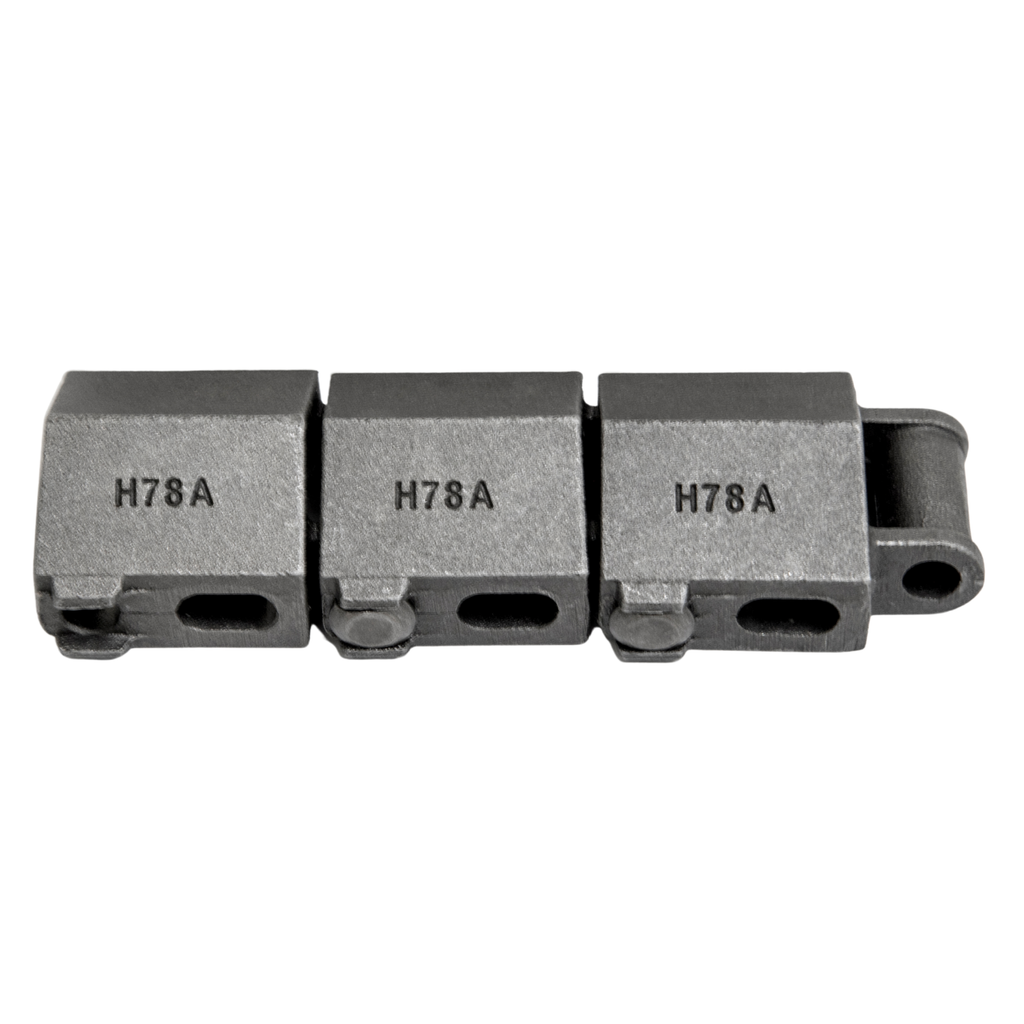

The H78A Transfer Rooftop Chain is designed for smooth and reliable product movement in transfer conveyor systems. Commonly used in material handling, forestry, wood processing, and industrial conveying applications, this chain features a raised rooftop design that helps support efficient transfer of products while reducing potential hang-ups during operation.
Manufactured from durable malleable iron, H78A transfer rooftop chain offers excellent toughness and resistance to shock loading, making it well suited for demanding industrial environments. Its detachable chain design also allows for simplified maintenance and replacement of individual components, helping reduce downtime and maintenance costs.
Applications
- Transfer conveyors
- Wood processing facilities
- Forestry and sawmill operations
- Material handling systems
- Sorting and conveying equipment
Specifications
Chain Size: H78A
Pitch: 2.609”
Pin Diameter: 0.50”
Sidebar Height: 1.00”
Barrel Diameter: 0.88”
Max. Allowable Sprocket Face: 1.12”
Overall Width: 3.25”
End of Pin to Center Line” 1.62”
Head of Pin to Center Line: 1.56”
Overall Length of Barrel: 1.88”
Center of Pin to Top: 1.12”
Width of Top: 2.81”
Links per 10ft: 46
Average Ultimate Strength: 20,800
