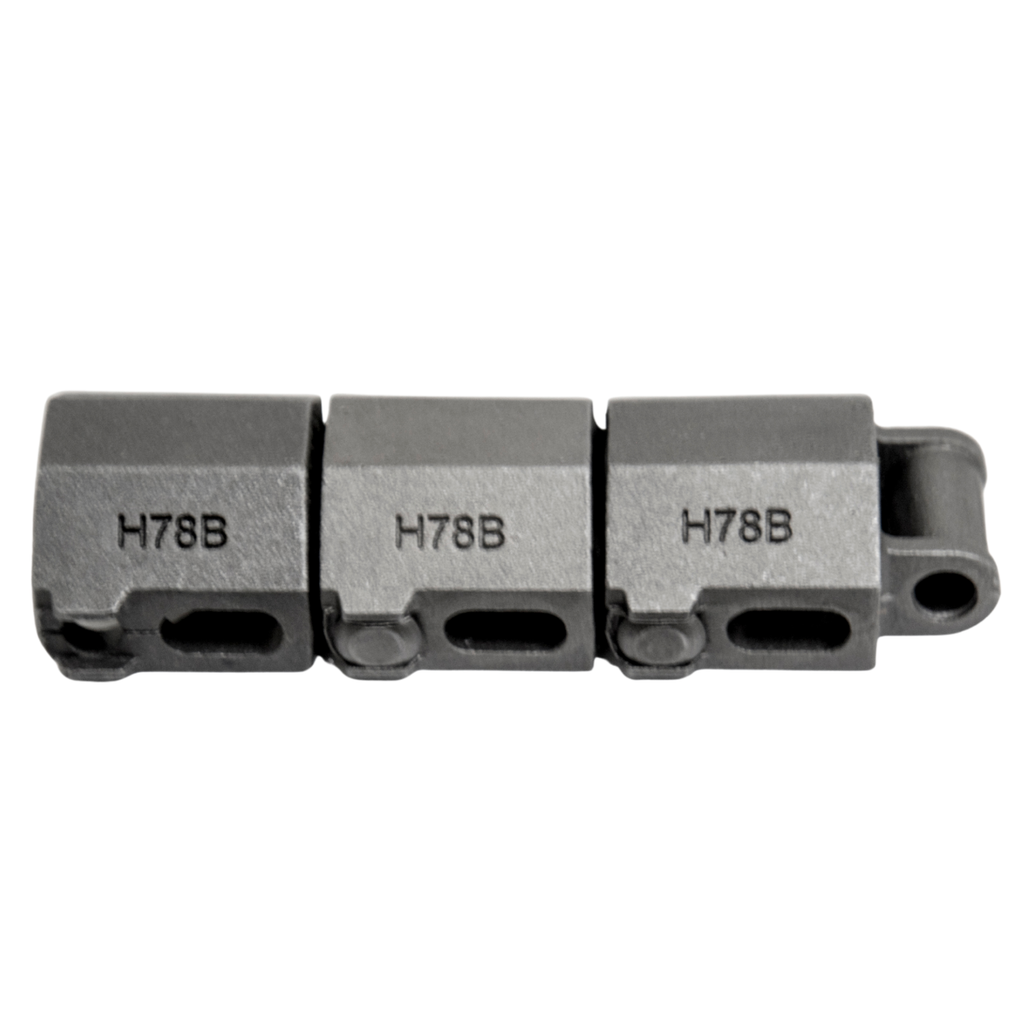

The H78B Transfer Rooftop Chain is engineered for transfer conveyor applications that require dependable performance and efficient material movement. The rooftop profile helps products move smoothly through conveyor systems, making this chain a popular choice for industrial conveying, forestry operations, and material handling equipment.
Constructed from durable malleable iron, H78B transfer rooftop chain is built to withstand demanding operating conditions while providing reliable service over time. Its rugged design and detachable construction help simplify maintenance and support long-term operational efficiency.
Applications
- Transfer conveyor systems
- Sawmill and forestry operations
- Material handling equipment
- Industrial conveying systems
- Product sorting and transfer lines
Specifications
Chain Size: H78B
Pitch: 2.609”
Pin Diameter: 0.50”
Sidebar Height: 1.00”
Barrel Diameter: 0.88”
Max. Allowable Sprocket Face: 1.12”
Overall Height: 1.69”
Max. Recommended Working Load: 2,820 lbs
Overall Width: 3.25”
End of Pin to Center Line” 1.62”
Head of Pin to Center Line: 1.56”
Overall Length of Barrel: 1.88”
Center of Pin to Top: 1.12”
Width of Top: 2.81”
Links per 10ft: 46
Average Ultimate Strength: 20,800
