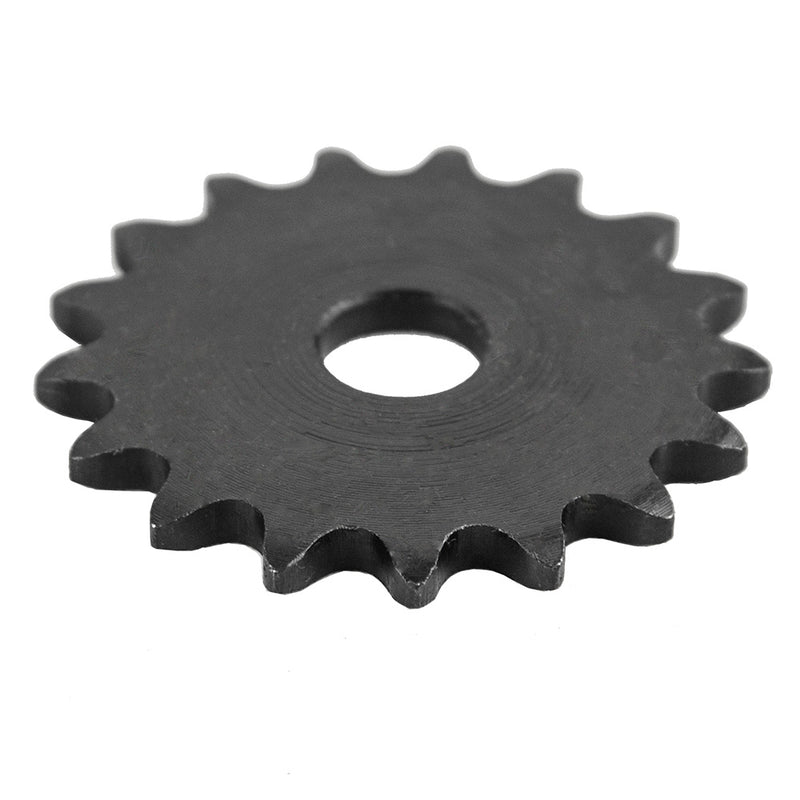

The Jeremywell 35A17T A-Type Sprocket is designed for use with ANSI #35 roller chains in power transmission and conveying systems. Featuring an A-Type flat plate design without a projecting hub, this sprocket provides a compact profile for applications where space is limited or where the sprocket will be mounted, welded, or incorporated into a custom assembly.
With 17 teeth and a 1/2" bore, this roller chain sprocket is suited for industrial equipment, machinery, conveyors, drive systems, and other roller chain applications. The sprocket is manufactured for reliable chain engagement and consistent power transmission when paired with the correct chain size and system components.
#35 Sprocket Specifications
Hub Style: A-Type
Number of Teeth: 17
Bore Size: 1/2 inch
Material: AISI 1045 Medium Carbon Steel
Outside Diameter: 2.23 inch
Chain Size: #35
Pitch Size: 0.375 inch
