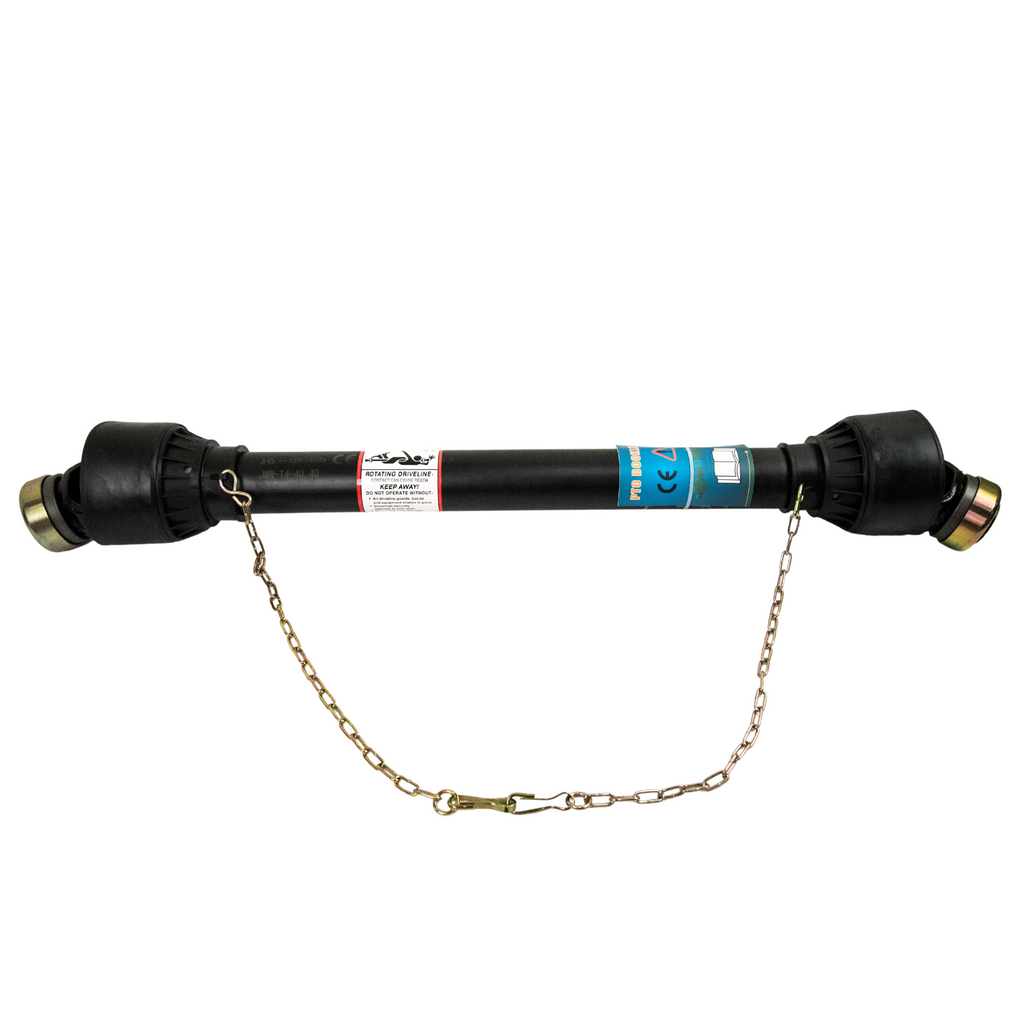

The Series 4 PTO Shaft with 1-3/8"–6 spline connections on both ends is designed for reliable power transmission between tractors and agricultural implements. Built for durability and smooth operation, this PTO shaft is ideal for common farm equipment requiring dependable torque transfer and secure spline engagement.
Specifications
- Series: 4
- Horsepower: 35HP(540 rmp) - 53HP(1000 rmp)

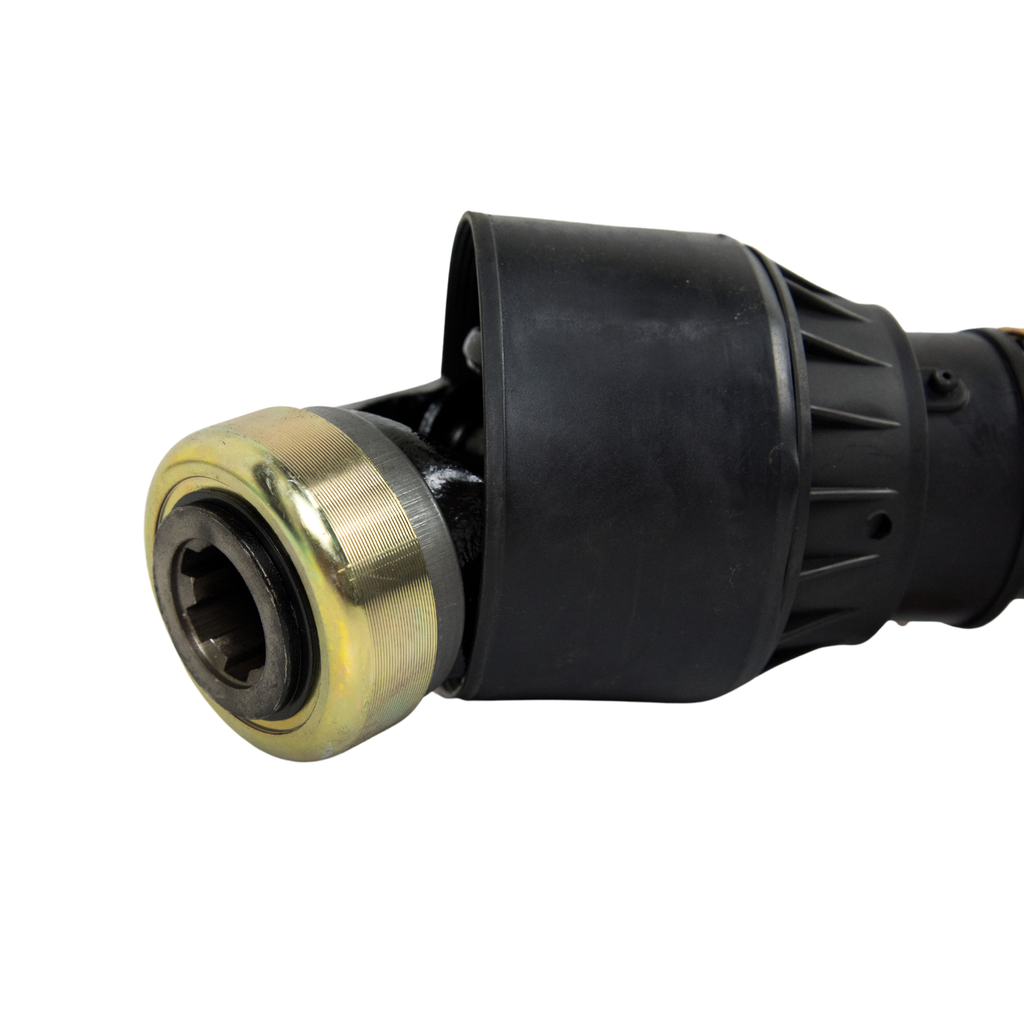

- Implement end: 1-3/8” 6 Spline and quick disconnect

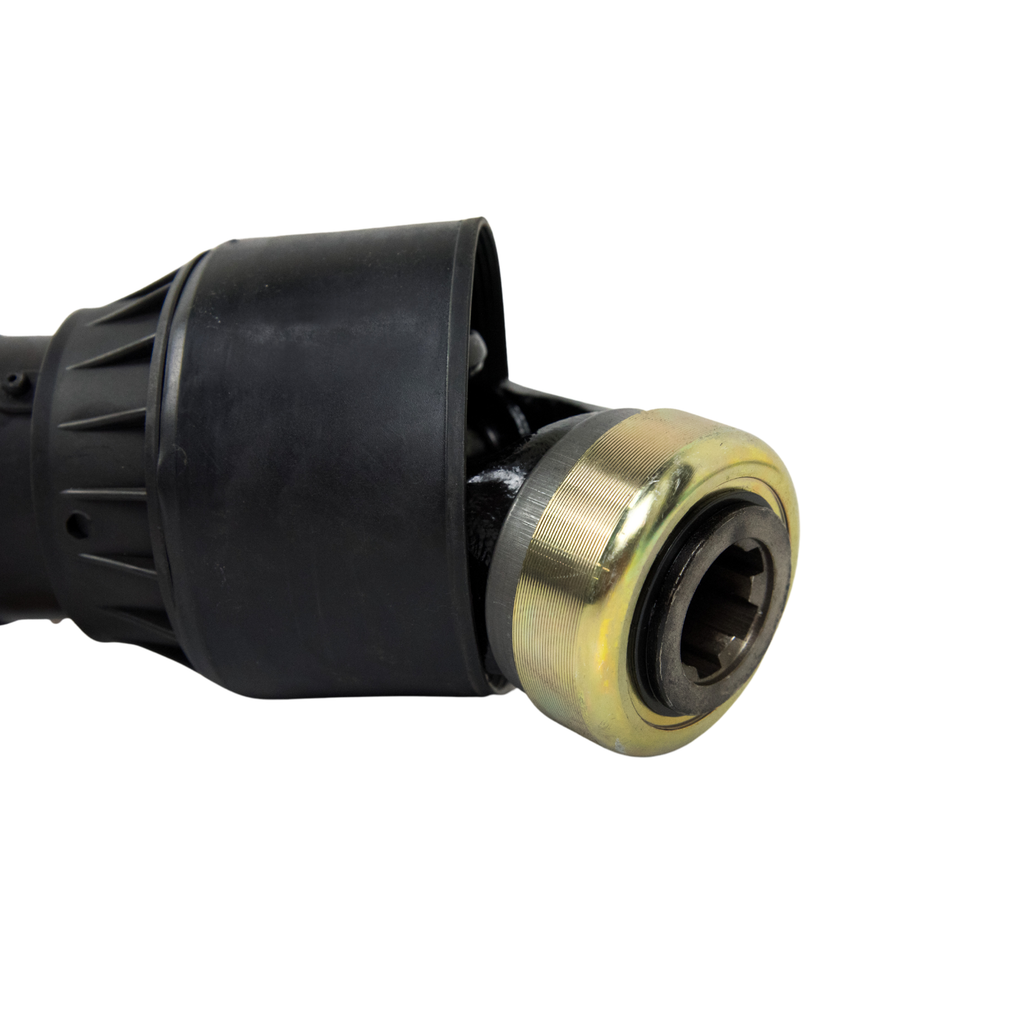

- Tractor end: 1-3/8” with 6 Splines and quick disconnect
- Retracted Length:40.4”
- Extended Length: 56.9”
- Fits: 4’,5’,6’ and 7’ King Kutter Finish Mowers
- Does not fit 4’,5’ and 6’ Rotary Cutters
-
Desired Horse Power Rating / Overall Clutch Spring Length Adjustment:
- 30hp - 31.0mm, 35hp - 30.50mm, 40hp - 30.00mm, 45hp - 29.50mm, 50hp - 29.00mm
