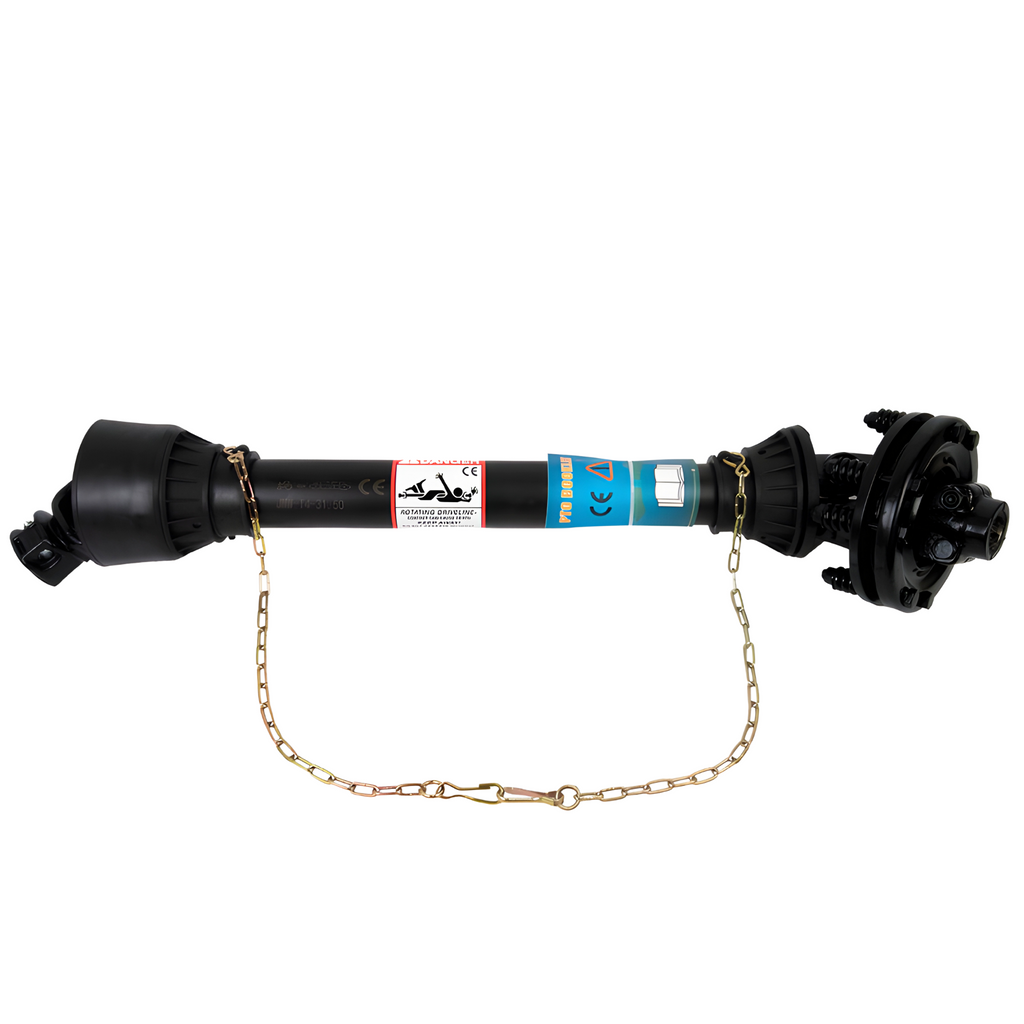

This Series 4 PTO Shaft features 1-3/8" 6-spline connections on both ends and is designed as a replacement driveline for select Bush Hog finish mowers, including models using part number T4-800-05B-FFV1. Built for dependable power transfer, this PTO shaft supports smooth operation between tractor and mower during routine mowing applications.
Specifications
- Series: 4
- Horsepower: 35HP(540 rmp) - 53HP(1000 rmp)
- Implement end: 1-3/8” with 6 Spline; Tractor end: 1-3/8” with 6 Splines and quick disconnect
- Tractor end: 1-3/8” with 6 Splines
- Friction disc slip clutch mounting
- Friction Disc Diameter: 5.5"
- Clutch Diameter: 7.09"
- Retracted Length: 31.5”
- Extended Length: 41”
-
Desired Horse Power Rating / Overall Clutch Spring Length Adjustment:
- 30hp - 31.0mm, 35hp - 30.50mm, 40hp - 30.00mm, 45hp - 29.50mm, 50hp - 29.00mm
- Reference: T4-800-05B-FFV1
-
Cross Joint: 1.06in x 2.94in / 27mm x 74.6mm
