The Jeremywell WH78 Welded Steel Chain is built for demanding conveyor and material-handling applications where increased wear resistance, strength, and durability are required. Its welded steel construction provides a rugged solution for continuous operation in abrasive and heavy-duty industrial environments.
Unlike WR Series chains, which feature heat-treated pins/rivets and bushings, Jeremywell WH Series chains are fully heat-treated across all components, including the pins/rivets, bushings, sidebars, and barrels. This comprehensive heat treatment helps increase wear resistance and durability throughout the chain, making the WH Series well suited for more demanding operating conditions.
WH welded steel chains are commonly used in sawmills, lumber processing, forestry equipment, agricultural conveyors, recycling systems, bulk material handling, and other heavy-duty industrial conveyor applications.

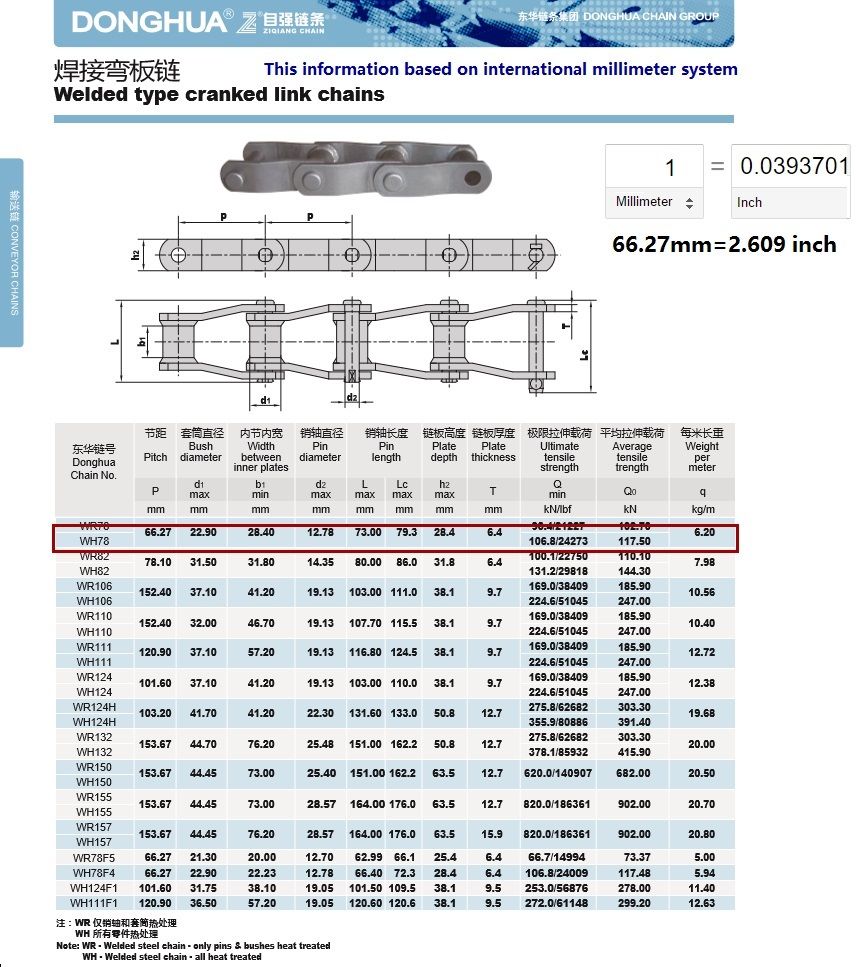

WH78 Chain Specifications
Pitch Size: 2.61 in
Bush Diameter: 0.90 in
Width Between Inner Plates: 1.12 in
Pin Diameter: 0.50 in
Pin Length L Max: 2.88 in
Pin Length Lc Max: 3.12 in
Plate Depth: 1.12 in
Plate Thickness: 0.25 in
Average Tensile Strength: 26527 lb
Material: Carbon Steel
Length: 10 FT BOX
Weight Per Foot: 4.17 lb/ft
