Description

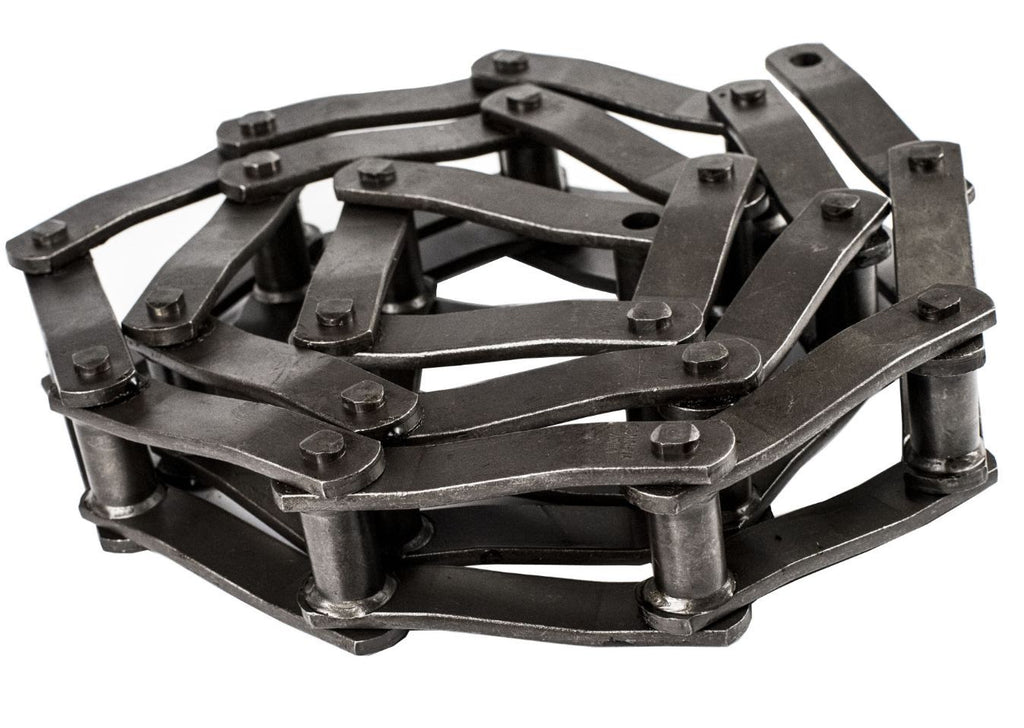

The Jeremywell WR132 welded steel chain is designed for dependable material handling in demanding conveyor applications. Its rugged welded steel construction provides reliable performance for moving bulk materials in industrial environments where durability and consistent operation are essential.
Jeremywell WR Series chains feature heat-treated pins/rivets and bushings for increased wear resistance at critical articulation points. The sidebars and barrels are not fully heat treated, making the WR Series a practical choice for applications that require dependable performance without the additional full-component heat treatment of a WH Series chain.
WR-welded steel chains are commonly used in lumber and sawmill equipment, forestry operations, agricultural conveyors, grain handling, recycling systems, and general industrial material-handling equipment.
WR132 Chain Specifications
Pitch Size: 6.05 in
Bush Diameter: 1.76 in
Width Between Inner Plates: 3.00 in
Pin Diameter: 1.00 in
Pin Length L Max: 5.95 in
Pin Length Lc Max: 6.39 in
Plate Depth: 2.00 in
Plate Thickness: 0.50 in
Average Tensile Strength: 68117 lb
Material: Carbon Steel
Length: 10 FT BOX
Weight Per Foot: 13.44 lb/ft
