Description
Jeremywell 35-2 Double Strand Roller Chain is designed for industrial power transmission applications requiring increased load capacity over a standard single strand chain. Featuring two parallel rows of precision-matched chain components, this duplex configuration provides reliable power transmission for conveyors, manufacturing equipment, agricultural machinery, material handling systems, and other demanding industrial drives.
Manufactured to ANSI dimensional standards, this chain has a 3/8 inch pitch for compatibility with corresponding 35-2 double strand sprockets and drive components. The chain has an average tensile strength of approximately 4,200 lbs and is supplied in a 10-foot length with 1 matching connecting link(s) included.
For installation, maintenance, or repairs, additional 35-2 connecting links and 35-2 offset links are available. Pair the chain with a compatible double strand sprocket, or browse our complete selection of roller chains for additional sizes and configurations.

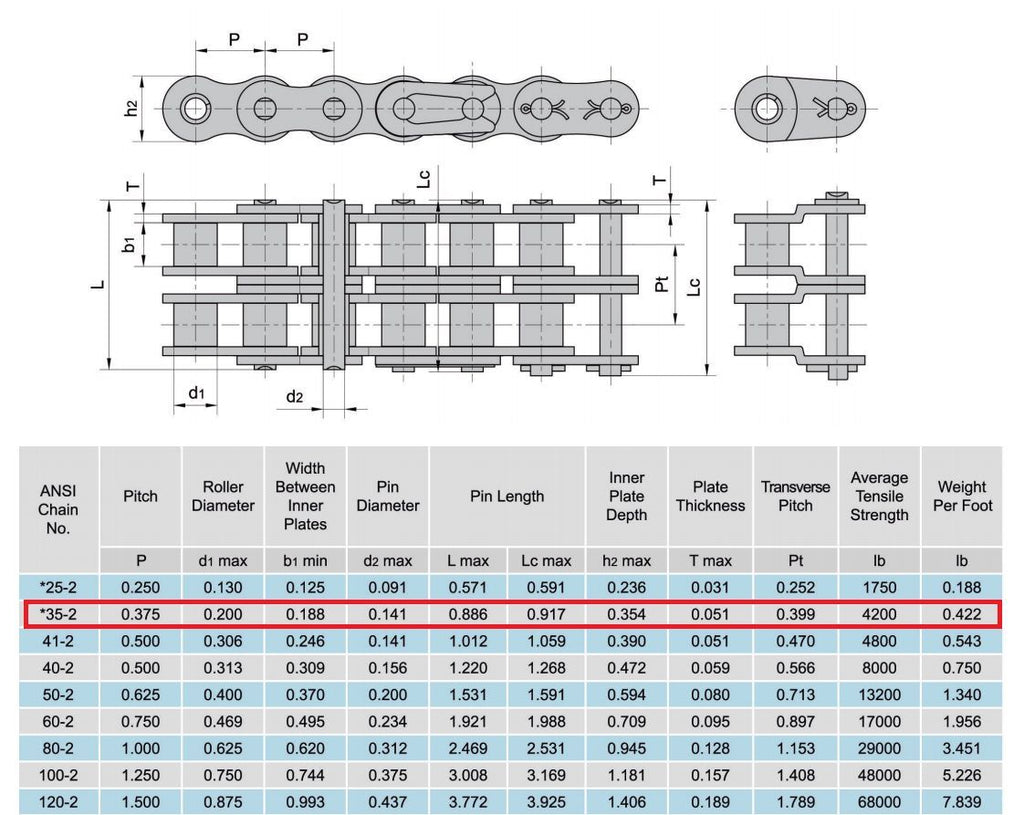

35-2 Chain Specifications
Pitch Size: 0.375 Inch
Roller Diameter: 0.200 Inch
Width Between Inner Plates: 0.188 Inch
Pin Diameter: 0.141 Inch
Pin Length L Max: 0.886 Inch
Pin Length Lc Max: 0.917 Inch
Inner Plate Depth: 0.354 Inch
Plate Thickness: 0.051 Inch
Average Tensile Strength: 4200 lb
Connecting Link Included: 1 Link
Material: Carbon Steel
Length: 10 Feet
Weight Per Foot: 0.422 lbs
