Description

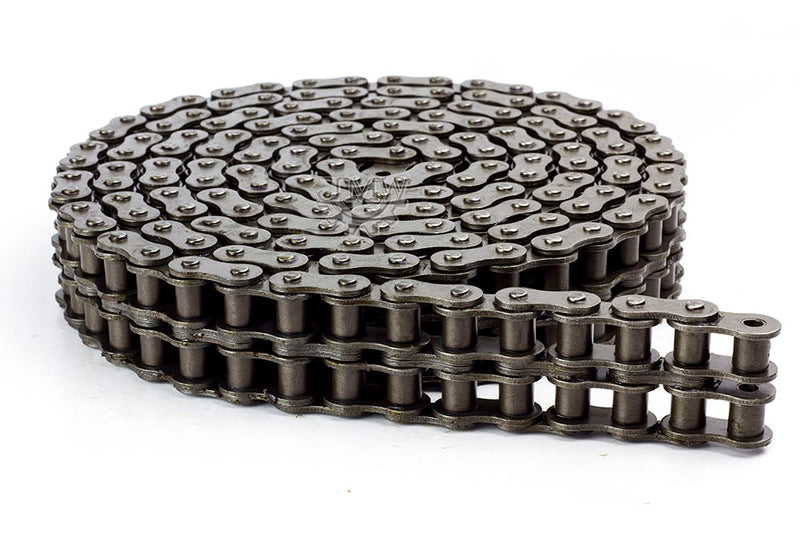

Jeremywell 40-2 Double Strand Roller Chain is designed for industrial power transmission applications requiring increased load capacity over a standard single strand chain. Featuring two parallel rows of precision-matched chain components, this duplex configuration provides reliable power transmission for conveyors, manufacturing equipment, agricultural machinery, material handling systems, and other demanding industrial drives.
Manufactured to ANSI dimensional standards, this chain has a 1/2 inch pitch for compatibility with corresponding 40-2 double strand sprockets and drive components. The chain has an average tensile strength of approximately 8,000 lbs and is supplied in a 10-foot length with 1 matching connecting link(s) included.
For installation, maintenance, or repairs, additional 40-2 connecting links and 40-2 offset links are available. Pair the chain with a compatible double strand sprocket, or browse our complete selection of roller chains for additional sizes and configurations.

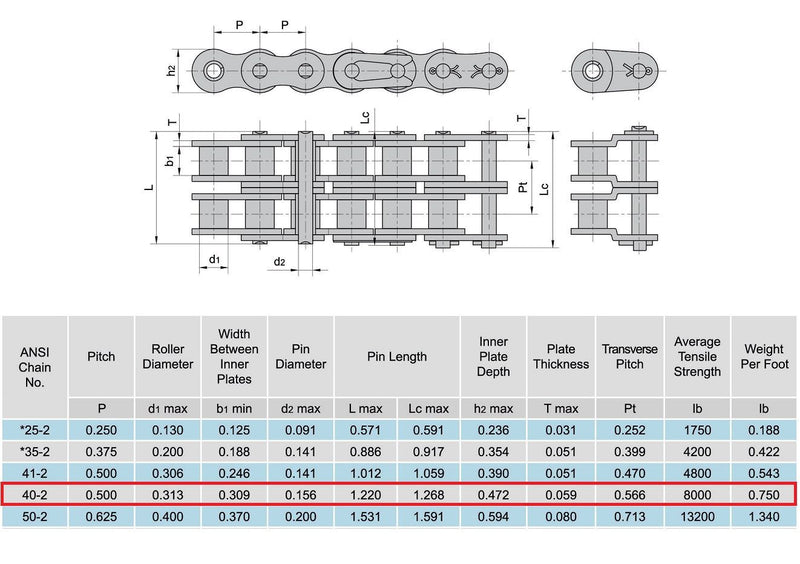

40-2 Chain Specifications
Pitch Size (p) : 0.500 Inch
Roller Diameter (d1 max) : 0.312 Inch
Width Between Inner Plates (b1 min) : 0.309 Inch
Pin Diameter (d2 max) : 0.156 Inch
Pin Length (L max) : 1.220 Inch
Pin Length (Lc max) : 1.268 Inch
Inner Plate Depth (h2 max) : 0.472 Inch
Plate Thickness (T max) : 0.059 Inch
Average Tensile Strength: 8000 lb
Connecting Link Included: 1 Link
Material: Carbon Steel
Length: 10 Feet
Weight Per Foot: 0.750 lbs
