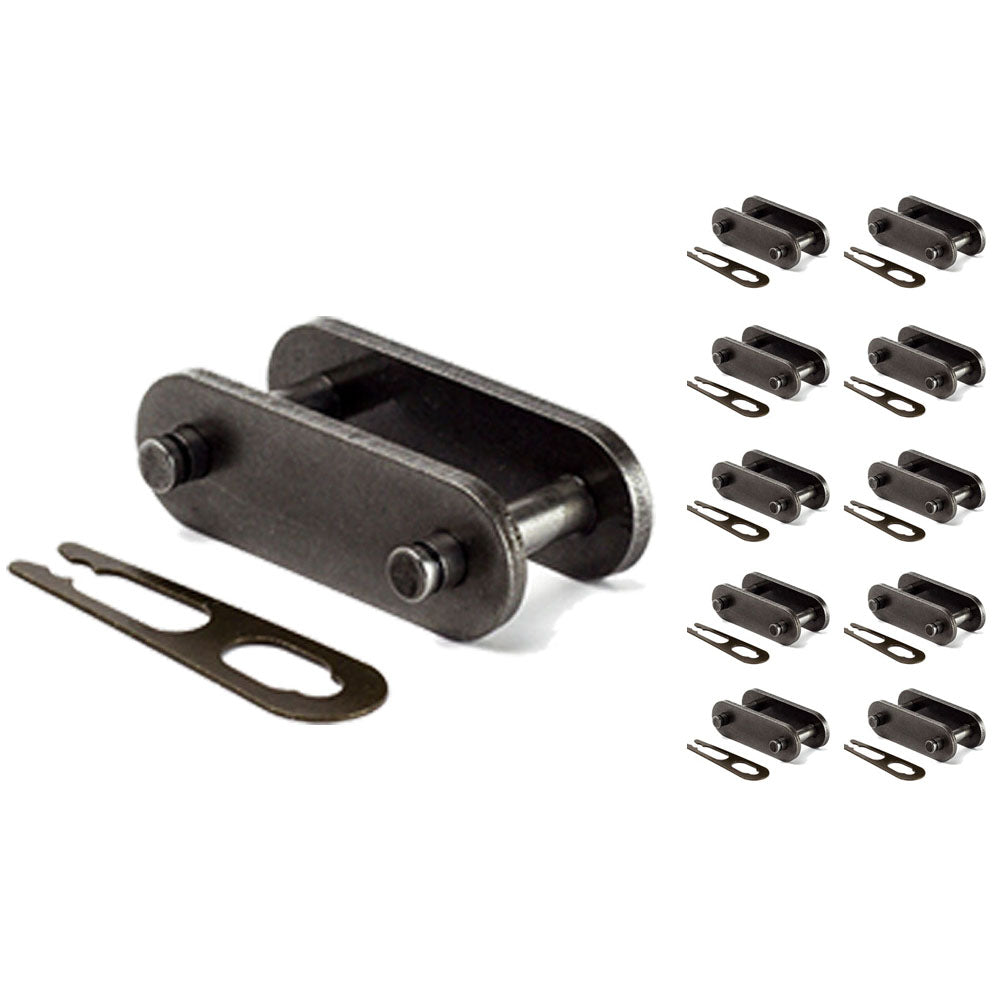

The C2050 Standard Conveyor Chain connecting link is designed for use with compatible C2050 chain assemblies. It provides a connection between compatible chain ends for installation, replacement, and maintenance.
Manufactured from carbon steel, this component is intended for conveyors, packaging equipment, agricultural machinery, manufacturing systems, and general material handling applications. The clip type connection should be installed using the appropriate procedures and tools. Verify chain series, dimensions, and compatibility before installation.
C2050 Connecting Link Specifications
Pitch Size: 1.25 Inch
Roller Diameter: 0.400 Inch
Width Between Inner Plates: 0.370 Inch
Pin Diameter: 0.200 Inch
Pin Length L Max: 0.815 Inch
Pin Length Lc Max: 0.874 Inch
Inner Plate Depth: 0.591 Inch
Plate Thickness: 0.080 Inch
Average Tensile Strength: 6317 lb
Material: Carbon Steel
Weight Per Foot: 0.523 lbs
Quantity Per Order: 10PCS
