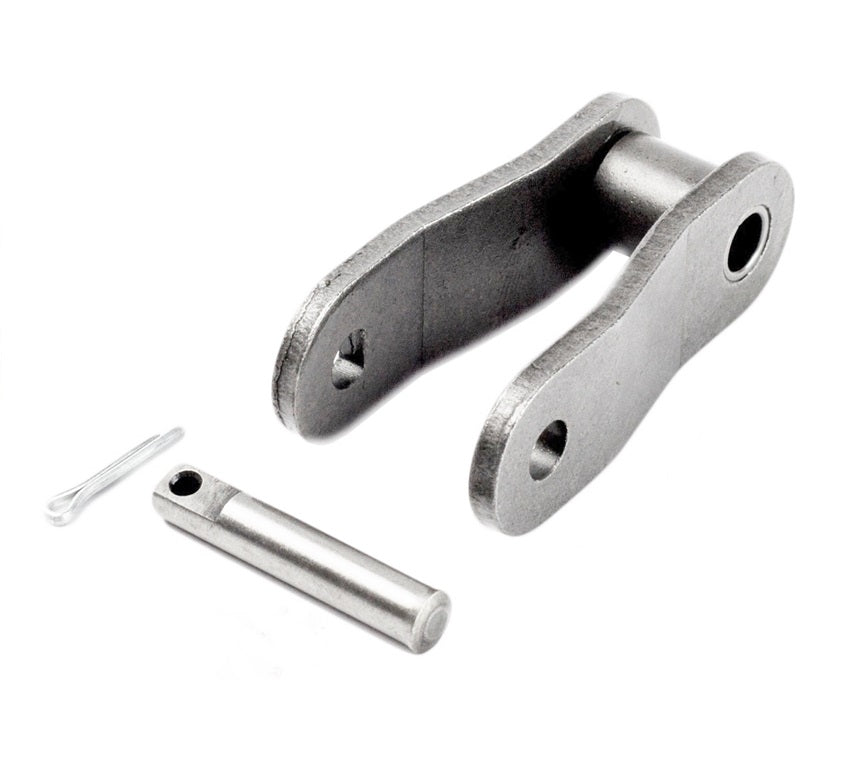

The C2050HSS Heavy Duty Stainless Steel Conveyor Chain offset half link is designed for use with compatible C2050HSS heavy duty stainless steel conveyor chain assemblies. For conventional compatible roller chains, an offset link allows a one-pitch chain length adjustment when a standard even-pitch configuration is not suitable.
Manufactured from stainless steel, this component is intended for heavy-duty food processing, washdown conveyors, corrosive environments, and high-load material handling. The cottered connection must be installed correctly, and confirm the chain dimensions, series, and load requirements before installation.
C2050HSS Offset Link Specifications
Pitch Size: 1.25 Inch
Roller Diameter: 0.312 Inch
Width Between Inner Plates: 0.370 Inch
Pin Diameter: 0.200 Inch
Pin Length L Max: 0.922 Inch
Pin Length Lc Max: 0.976 Inch
Inner Plate Depth: 0.591 Inch
Plate Thickness: 0.108 Inch
Average Tensile Strength: 6507 lb
Weight Per Foot: 1.108 lb
Material: Stainless Steel
Quantity Per Order: 1PC
