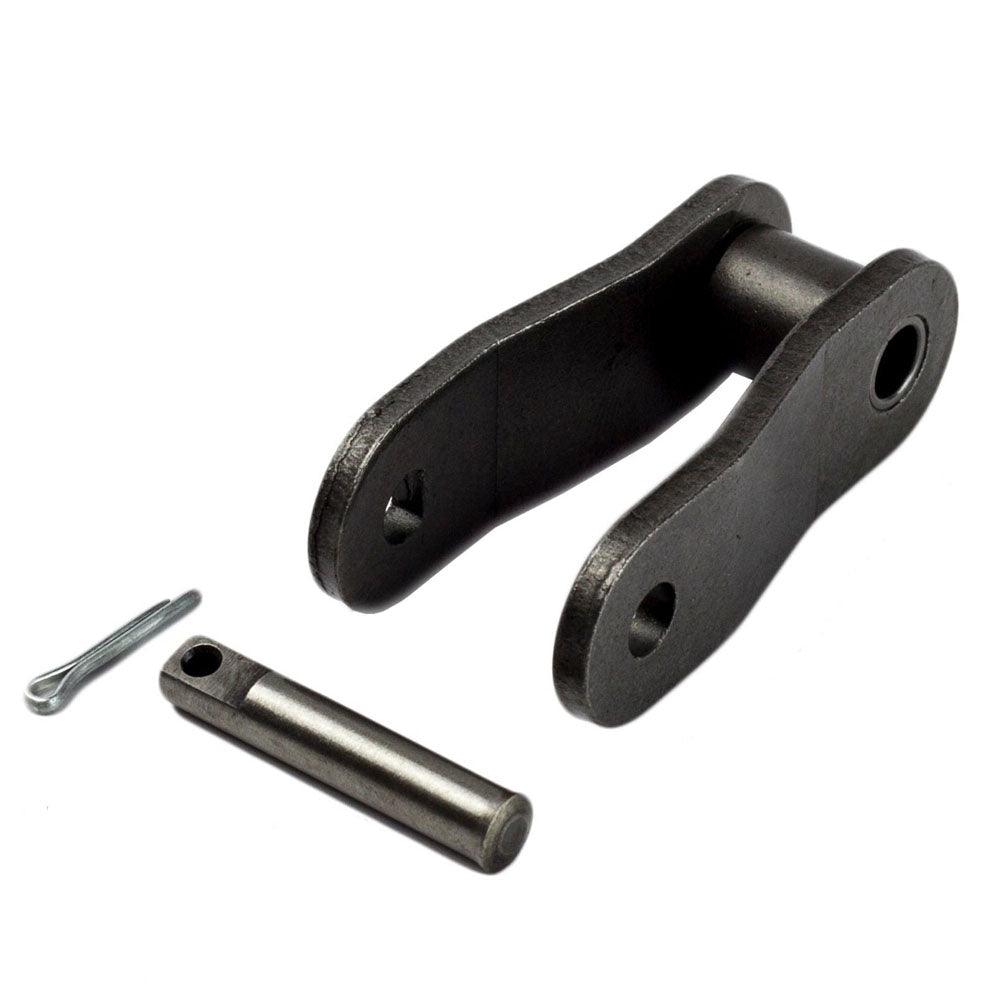

The CA550 Agricultural Conveyor Chain offset half link is designed for use with compatible CA550 agricultural conveyor chain assemblies. For conventional compatible roller chains, an offset link allows a one-pitch chain length adjustment when a standard even-pitch configuration is not suitable.
Manufactured from carbon steel, this component is intended for agricultural machinery, harvesting equipment, grain handling, and agricultural conveyors. The cottered connection must be installed correctly, and confirm the chain dimensions, series, and load requirements before installation.
CA550 Offset Link Specifications
Pitch Size: 1.63 Inch
Roller Diameter: 0.664 Inch
Width Between Inner Plates: 0.780 Inch
Pin Diameter: 0.283 Inch
Pin Length L Max: 1.378 Inch
Pin Length Lc Max: 1.496 Inch
Inner Plate Depth: 0.760 Inch
Plate Thickness: 0.110 Inch
Average Tensile Strength: 11511 lbs
Weight Per Foot: 1.300 lbs
Material: Carbon Steel

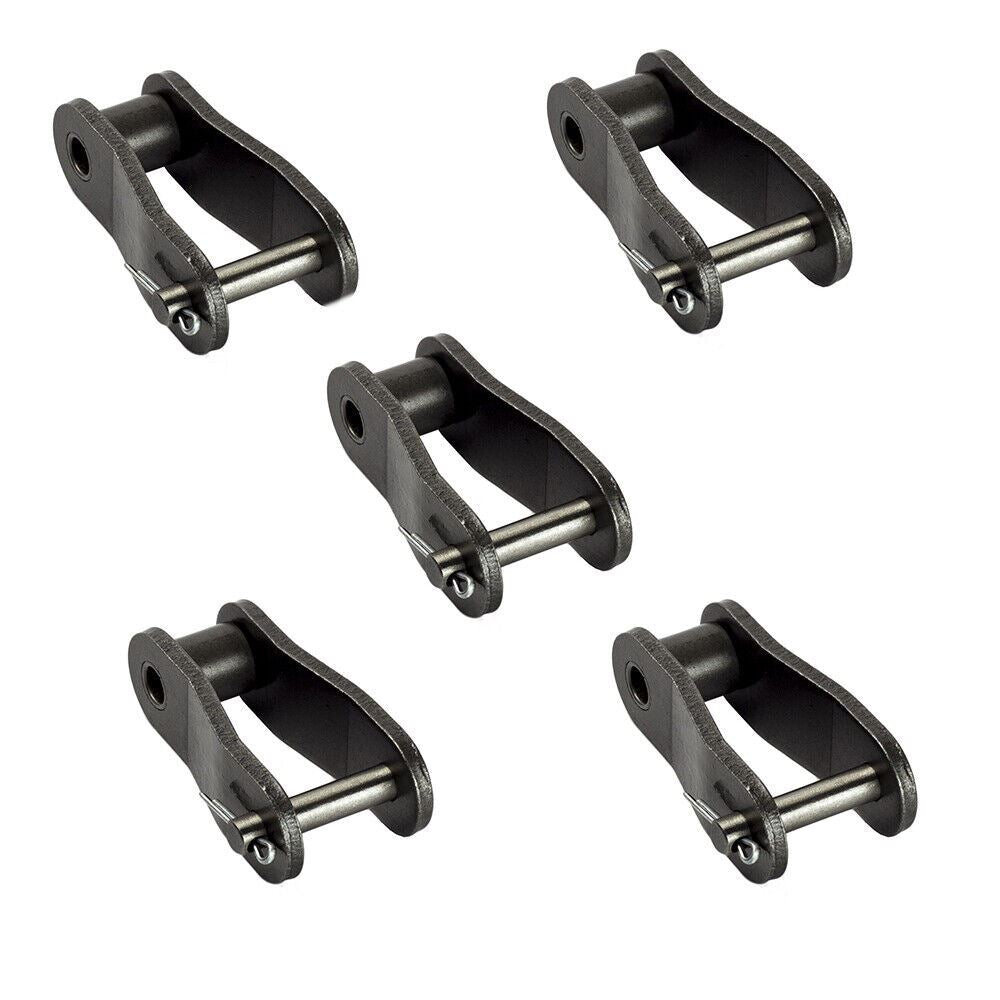

Quantity Per Order: 5PCS
